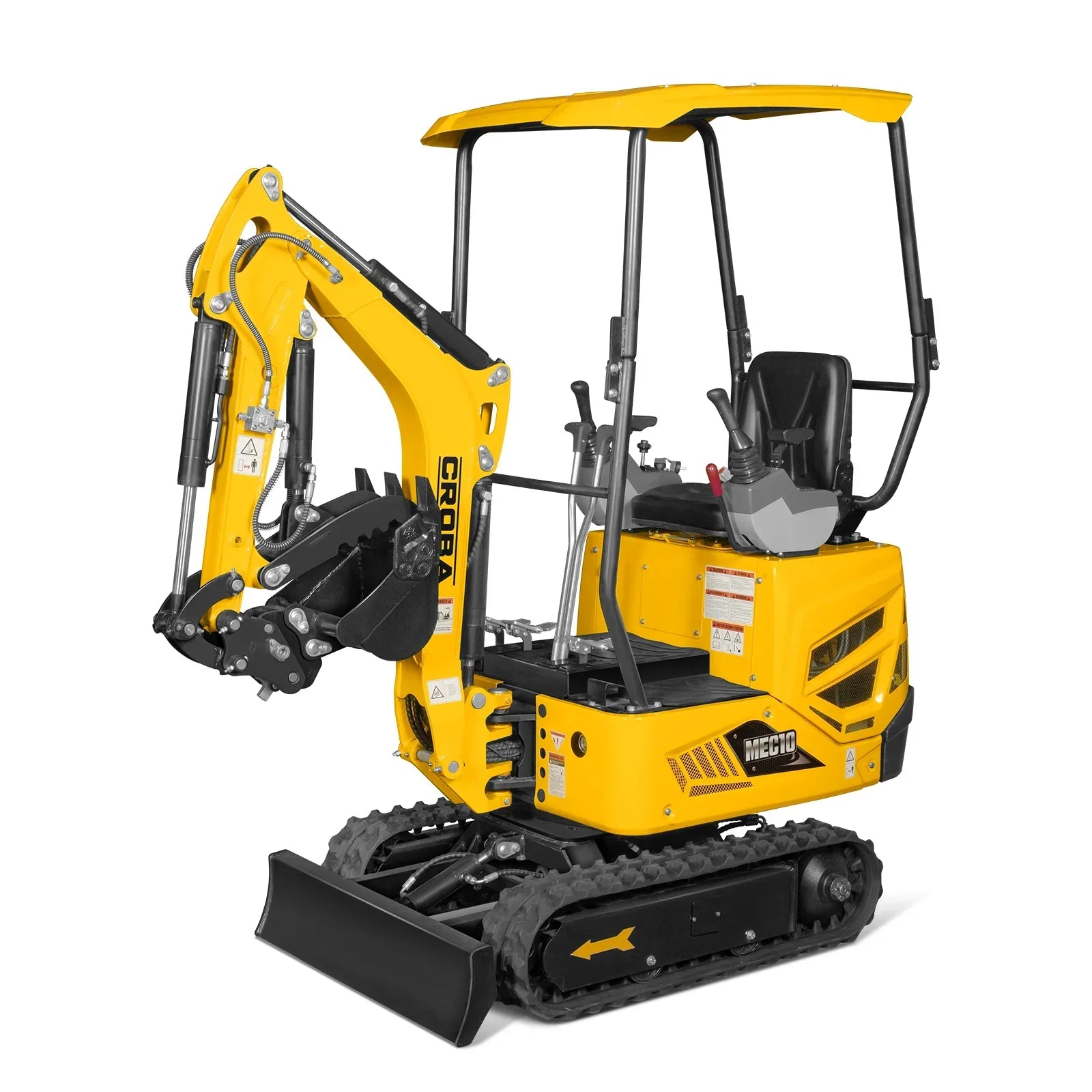

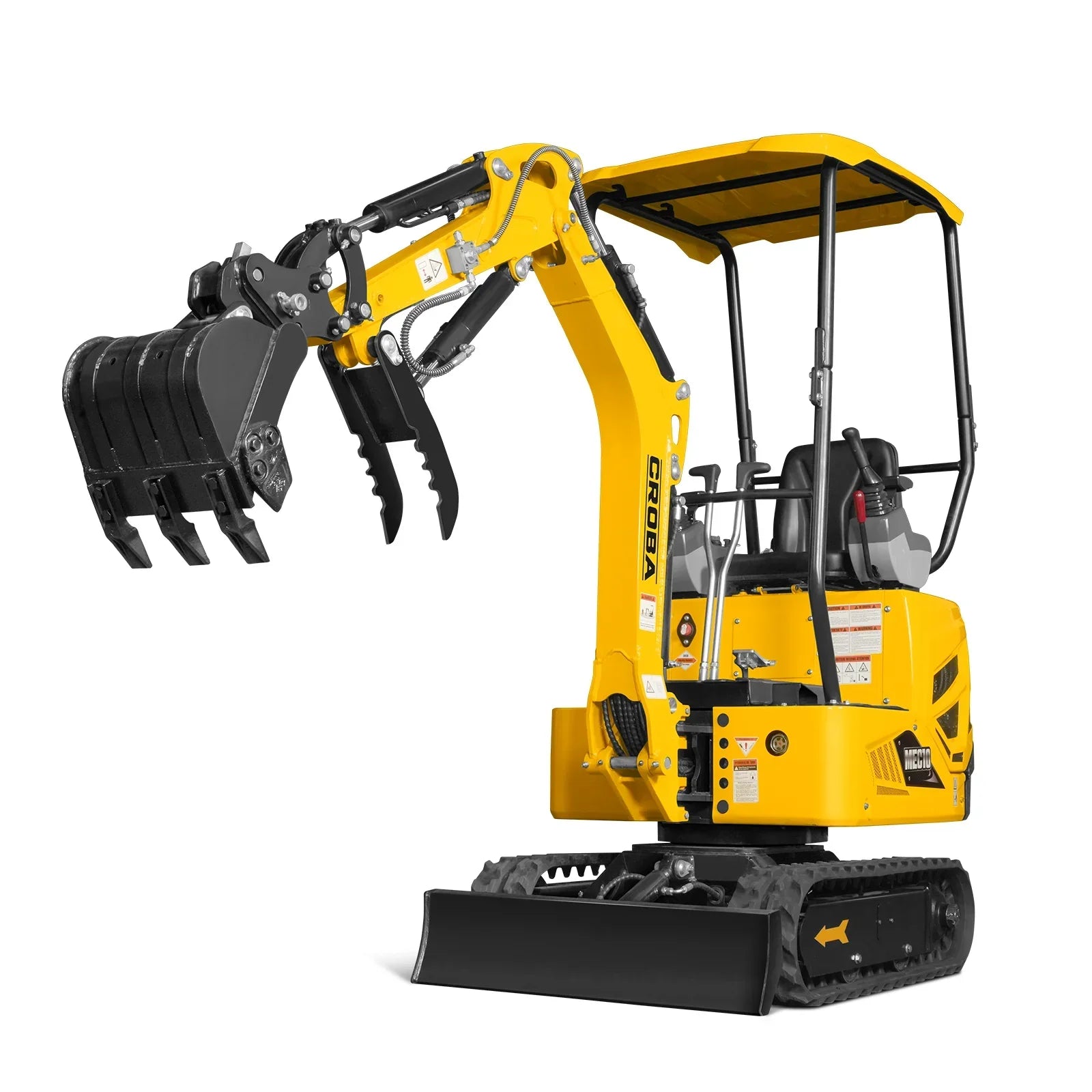

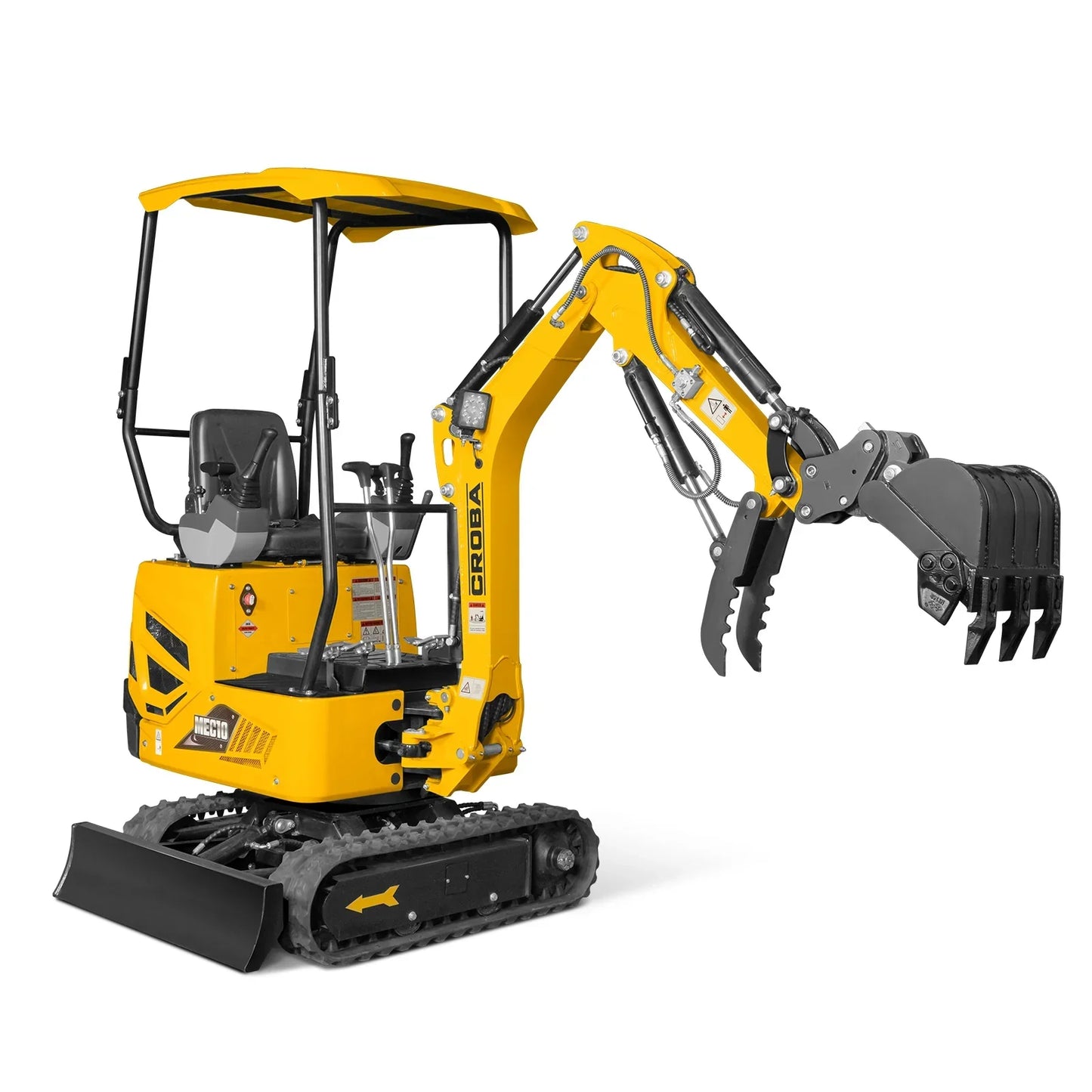

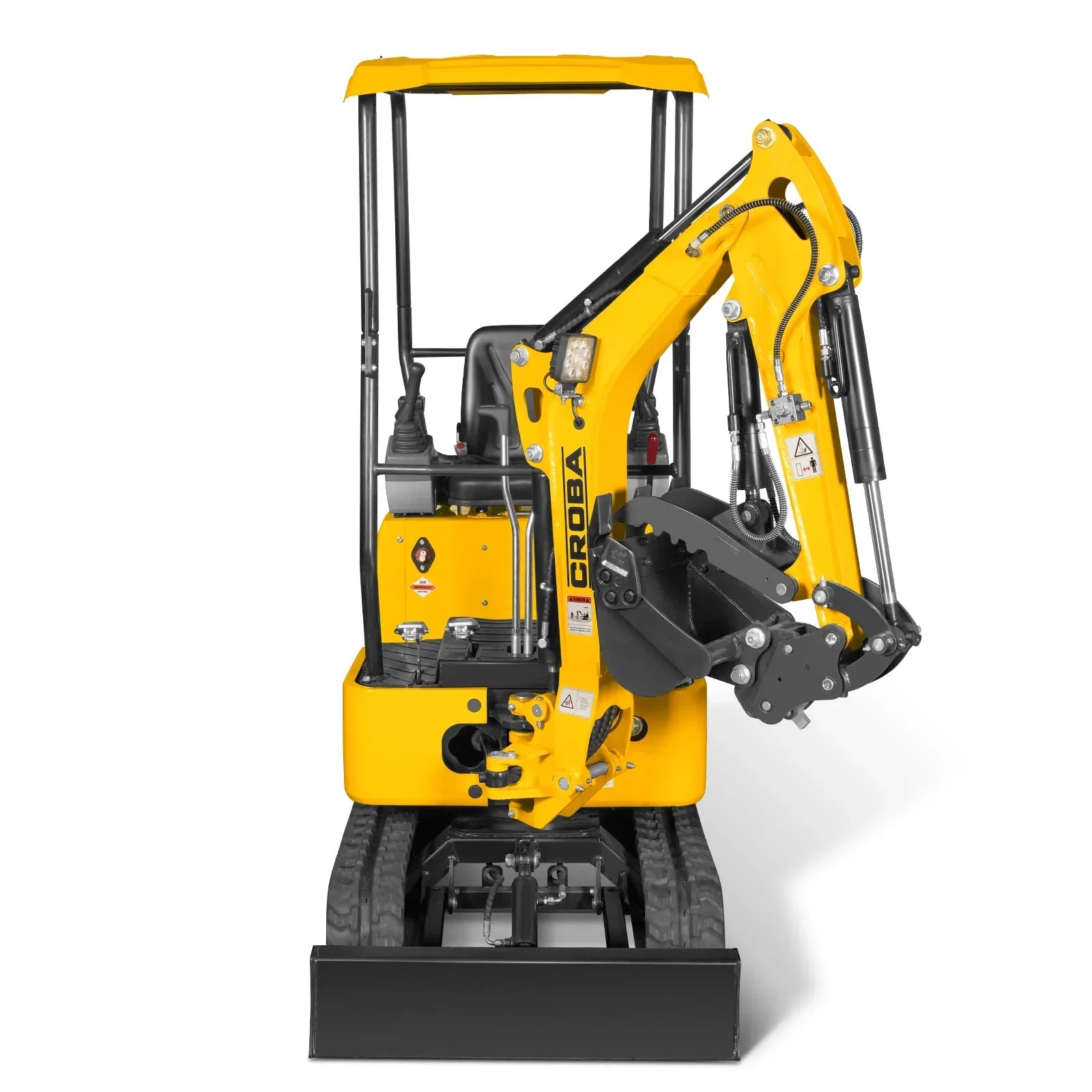

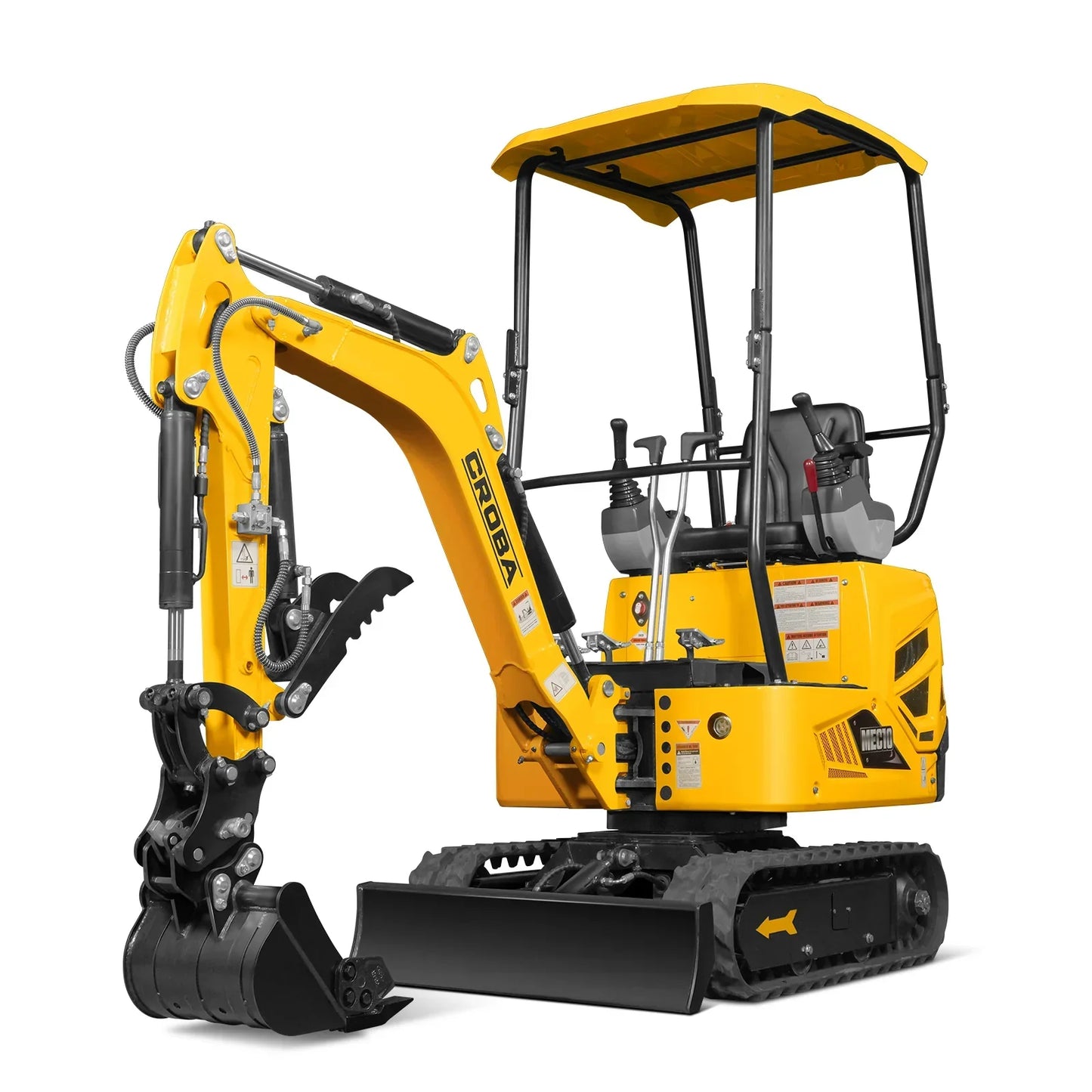

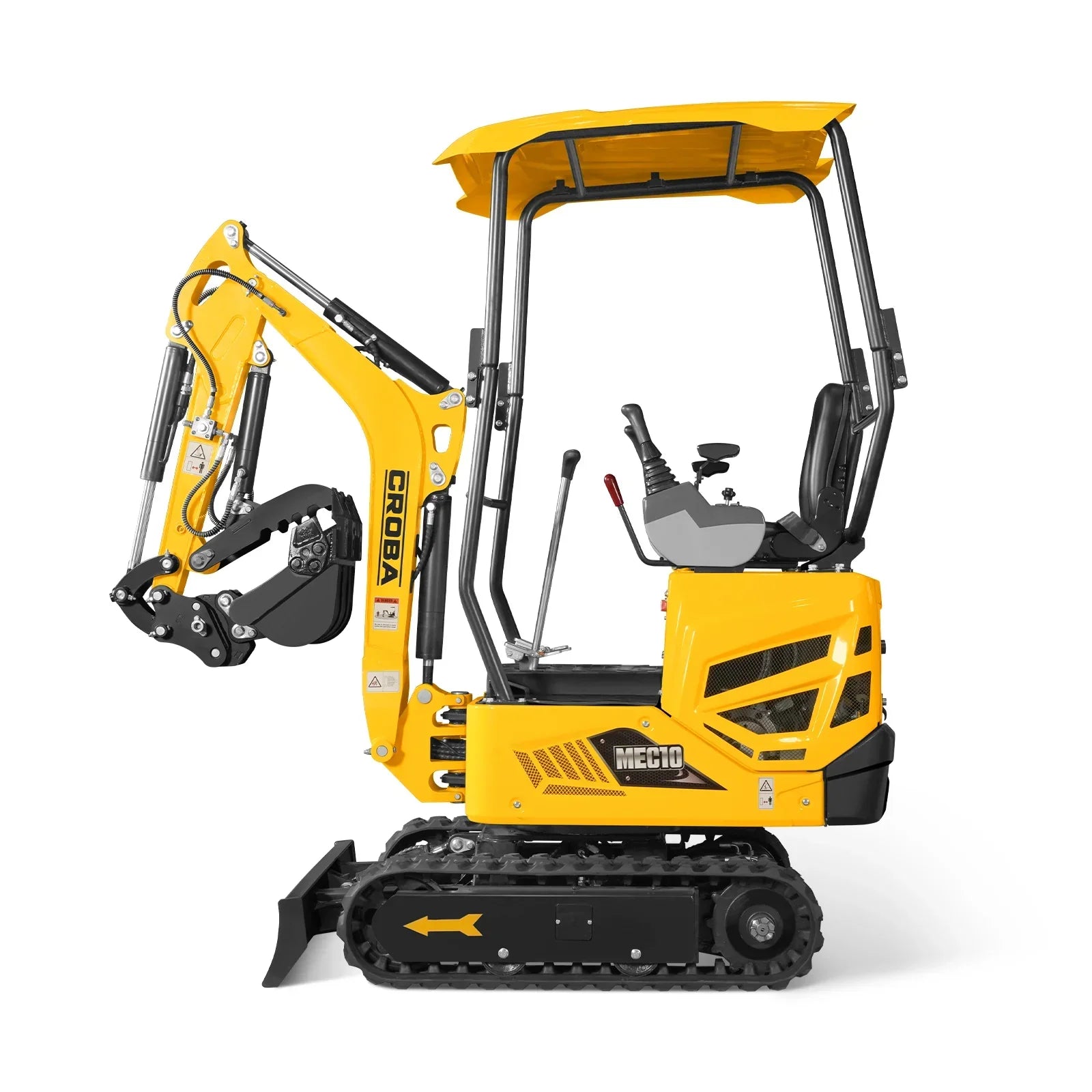

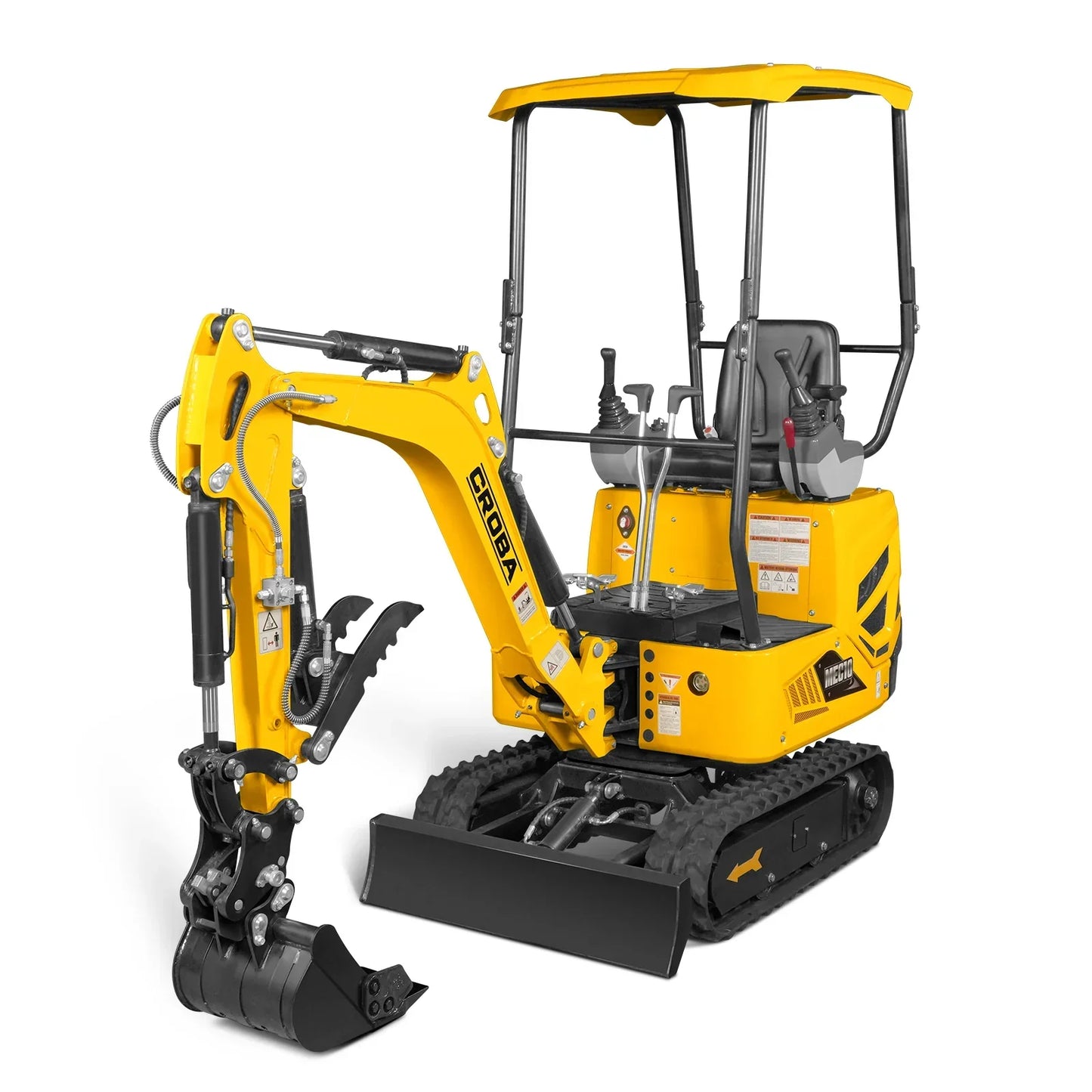

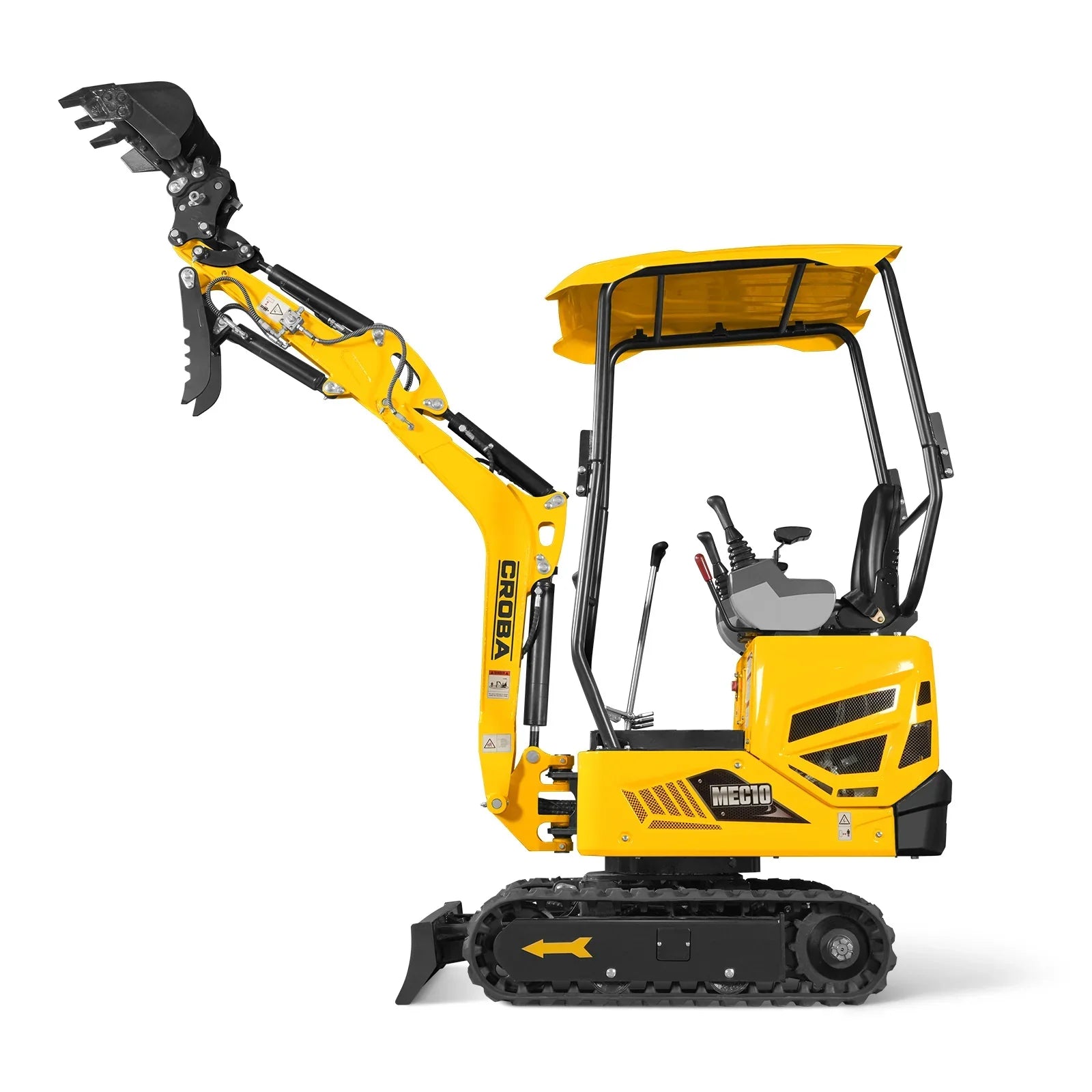

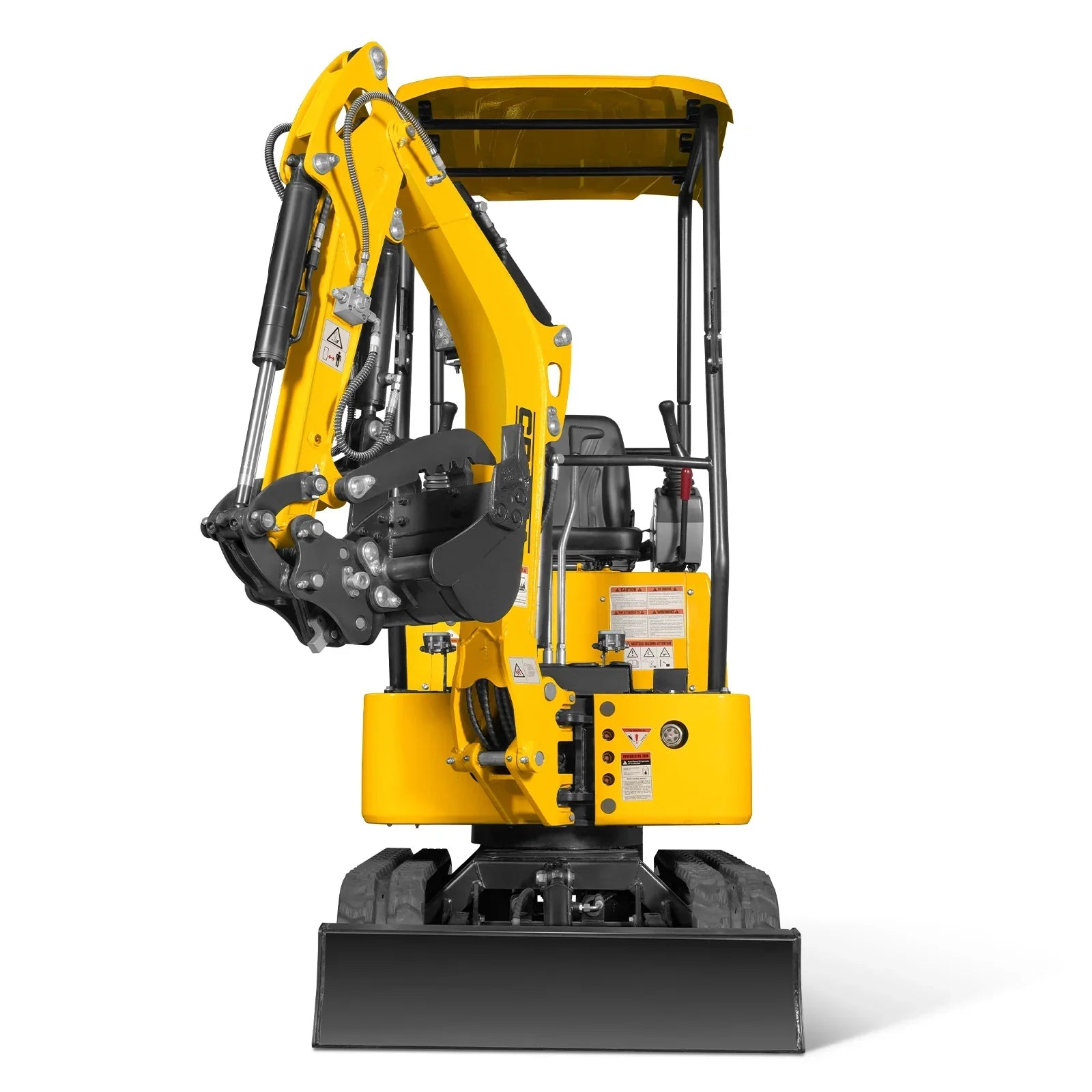

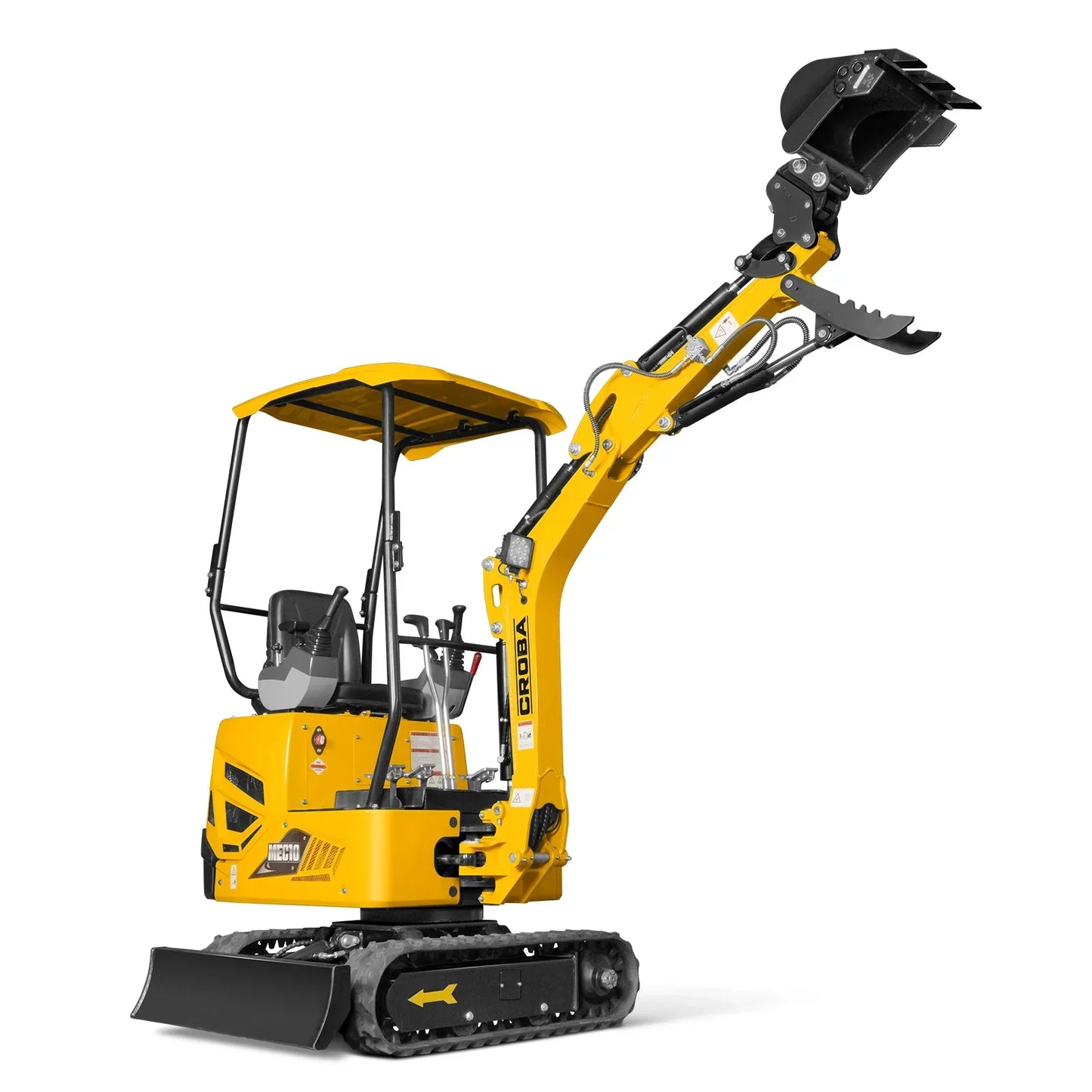

Mini Compact Excavator B&S VANGUARD 408cc 14hp Engine, 65.7” Max. Digging Depth, 2370 LBS Operating Weight, MEC10

Mini Compact Excavator B&S VANGUARD 408cc 14hp Engine, 65.7” Max. Digging Depth, 2370 LBS Operating Weight, MEC10

Regular price $4,849.50 USD
Regular price Sale price $4,849.50 USD
Sale Sold out
Shipping calculated at checkout.

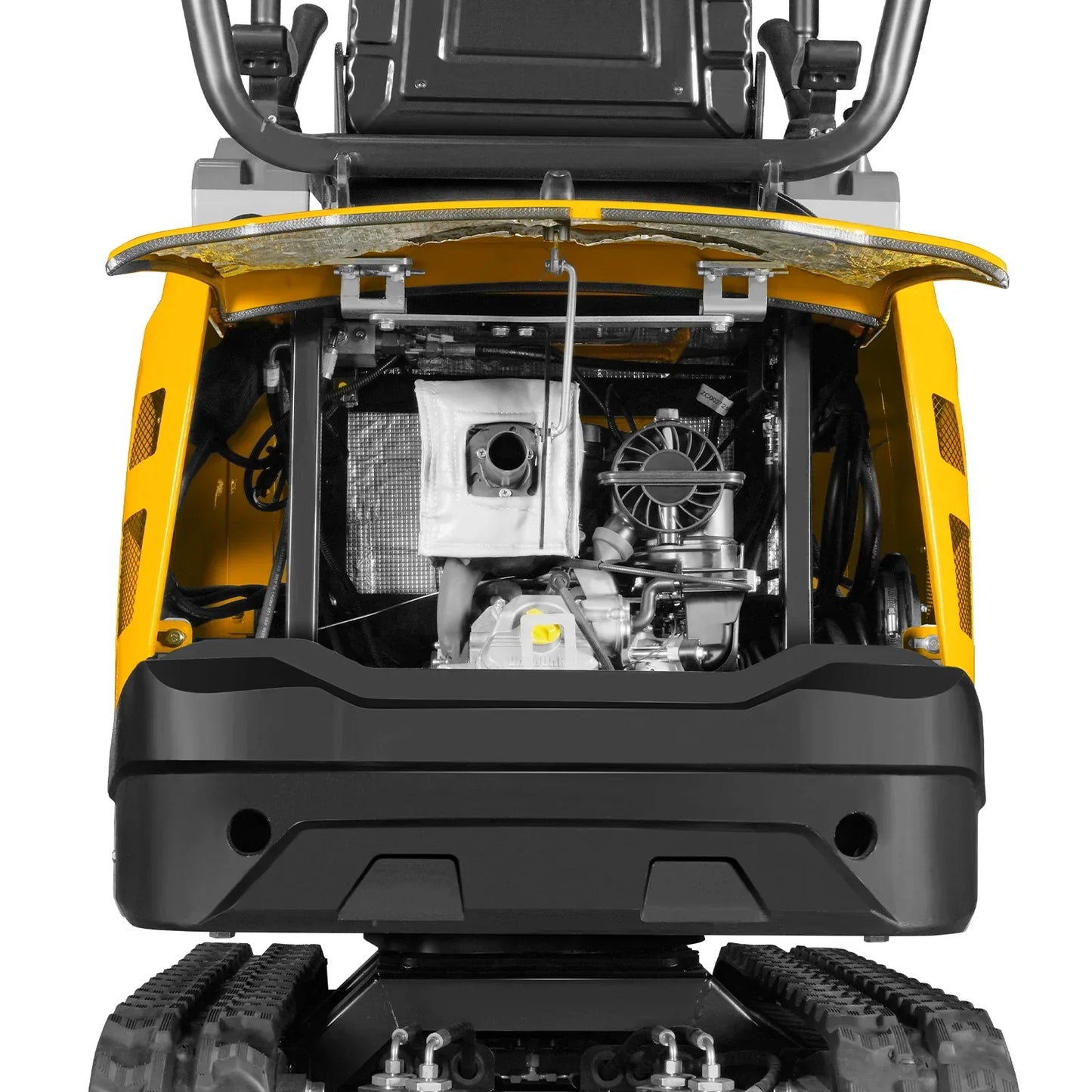

ENGINE
Model Vanguard 25V000 Displacement  408cc
No.Of Cylinders 1 Engine Output 14hp
Stroke 2.638in Warranty for Engine 3-Year
Bore 3.465in Fuel Tank 1.52 gal
Rated speed 3600rpm Engine Oil 0.7gal
TRAVEL SYSTEM
Max. Travel Speed 0.75 mile/h Ground Pressure 5.1psi
Maximum Traction Force 3035 lbf Gradeability - Maximum Maximum 30 degrees
Ground Clearance 15.9in Operating Weight 2370lbs

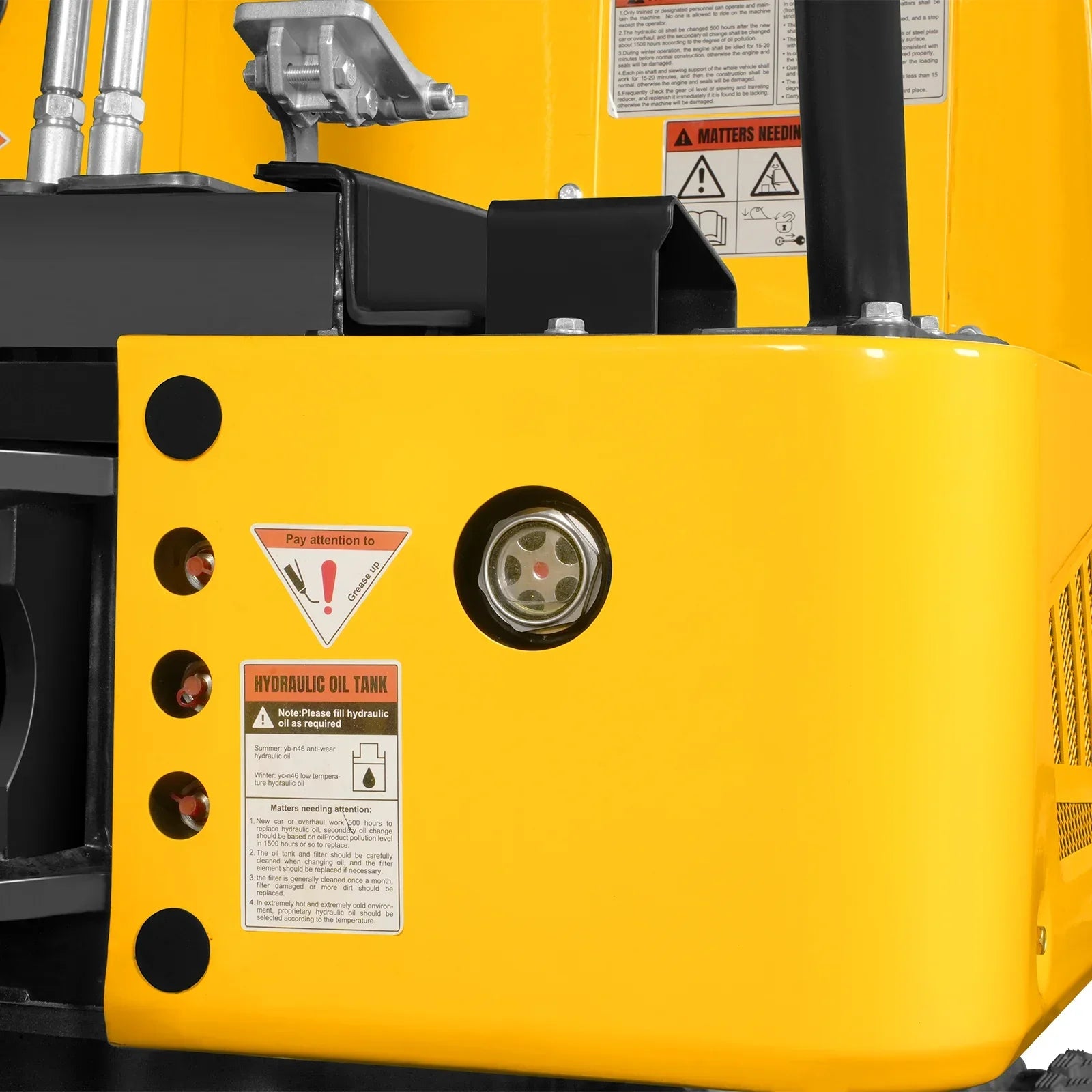

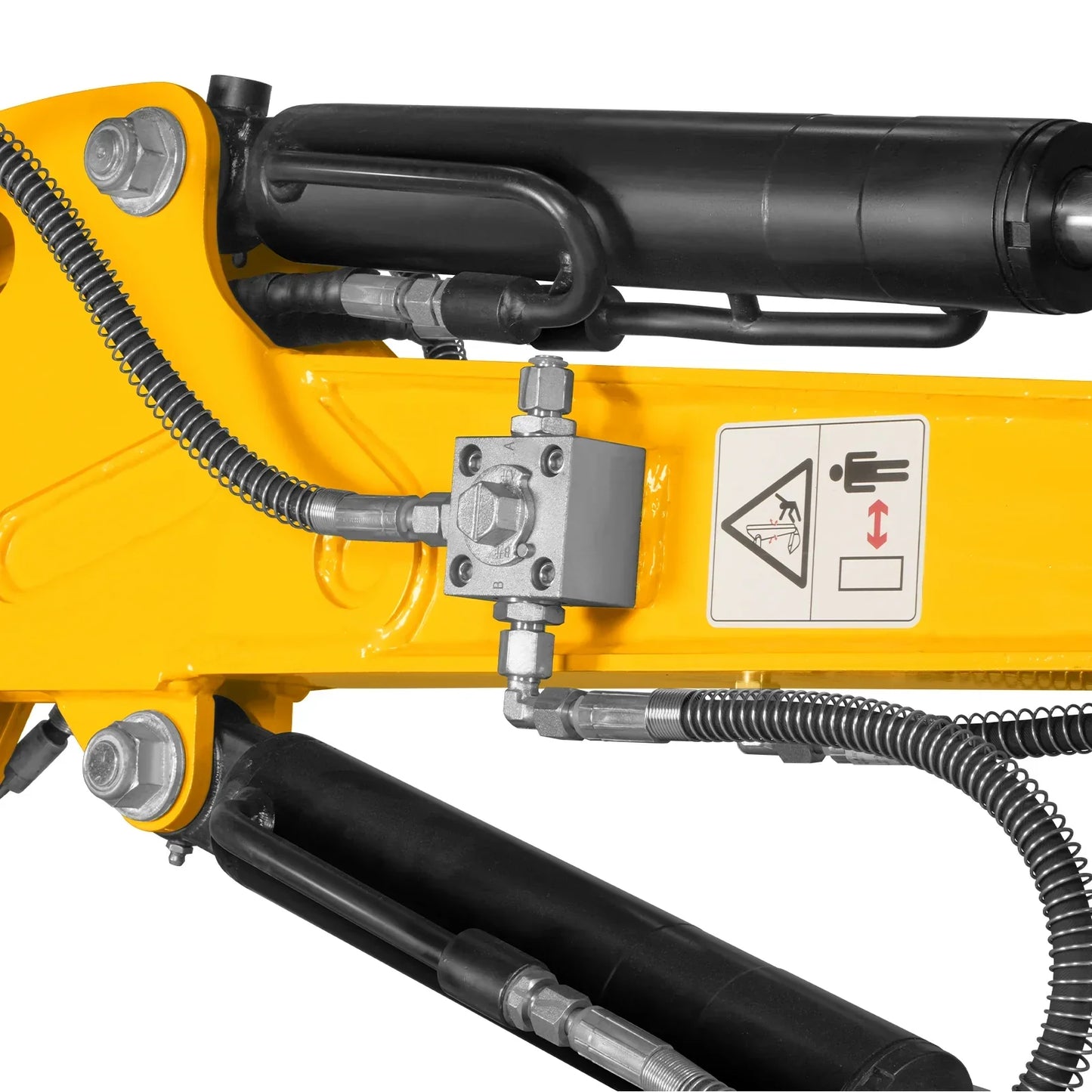

HYDRAULIC SYSTEM
Hydraulic Oil Tank 3.96gal Max.Discharge Flow 4.65 gpm
SWING SYSTEM
Swing Speed 8rpm Tail Swing Radius 32.6in
DIGGING FORCE
Bucket Digging Force 1619 lbf Arm Digging Force 1191 lbf
Bucket Capacity 0.7 ft³ Bucket Width 15 in
SCOPE OF WORK
Max.Digging Height 109 in Min Turning Radius Of Working Device 48.1in

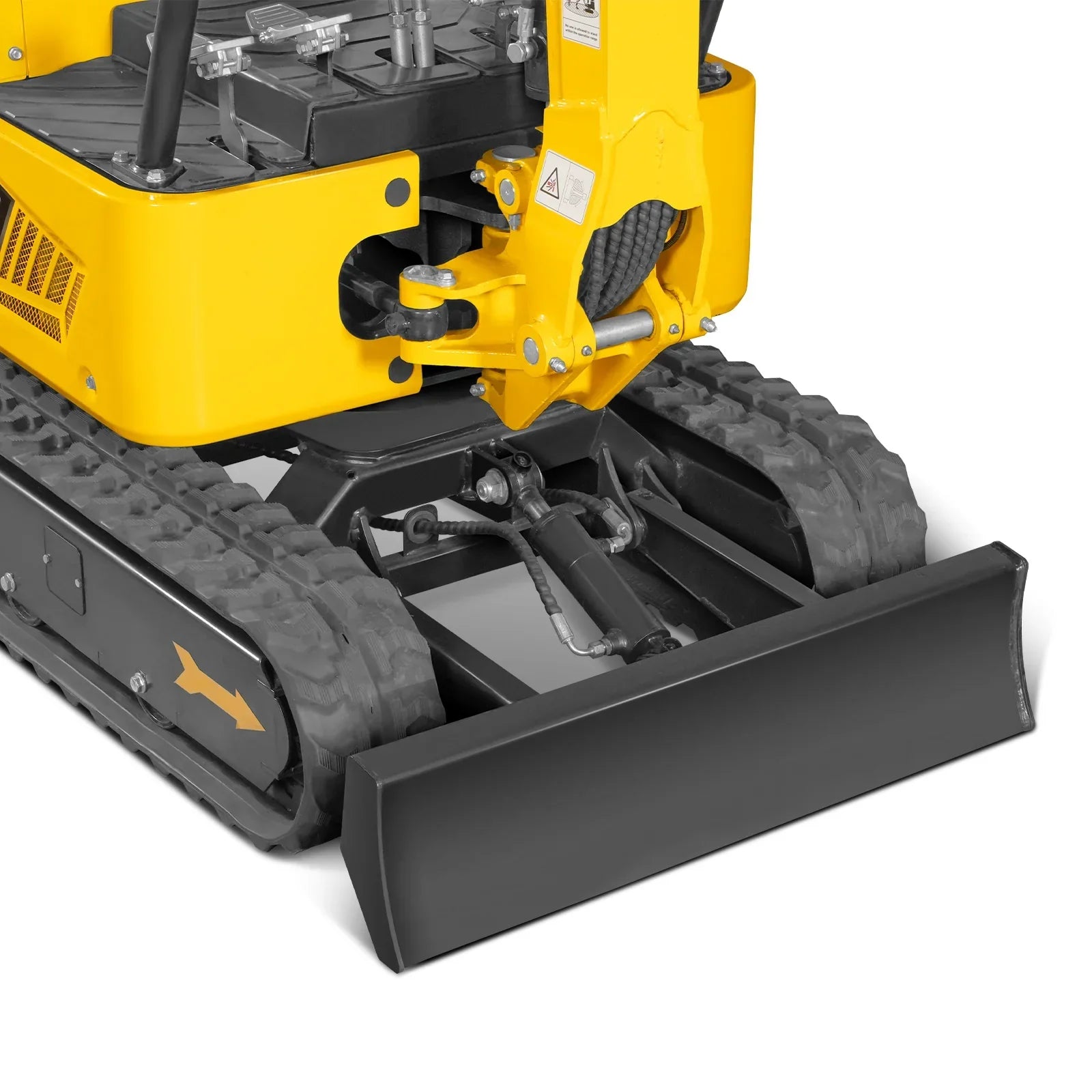

Max.Dumping Height 80 in Max. Lifting Height Dozer Blade 5.9in
Max.Digging Depth 65.7in Max. Depth Dozer Blade 7.4in
Max.Vertical Digging Depth 62.6in Boom Swing - Left 53°
Max Digging Radius 119in Boom Swing - Right 40°
Max.digging Radius At Ground Level 118.7in
DIMENSIONS
Transportation Length 82in/115in Crawler Wheel Base 36in
Overall Width  37in Track Belt/Shoe Width 7in
Overall Height(To Top Of Cab) 88.5in Track Length 48.5in
Counter Weight Ground Clearance 16in Track Width 37in
SERVICE
Package Method Wood Case Warranty for Machine 1 Year
Packing Size 91x40x98 in Weight (N.W./G.W.)  2180/2440 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
