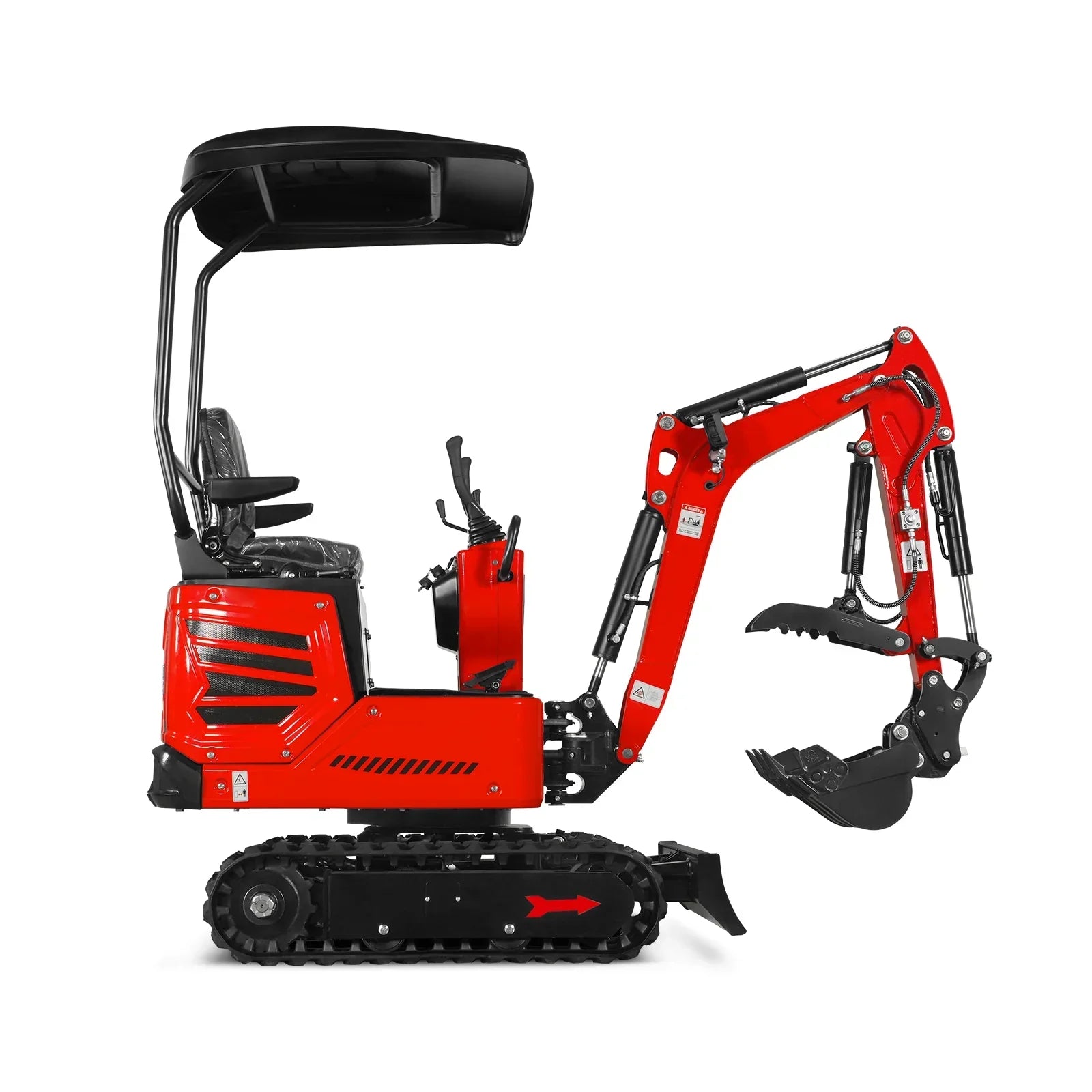

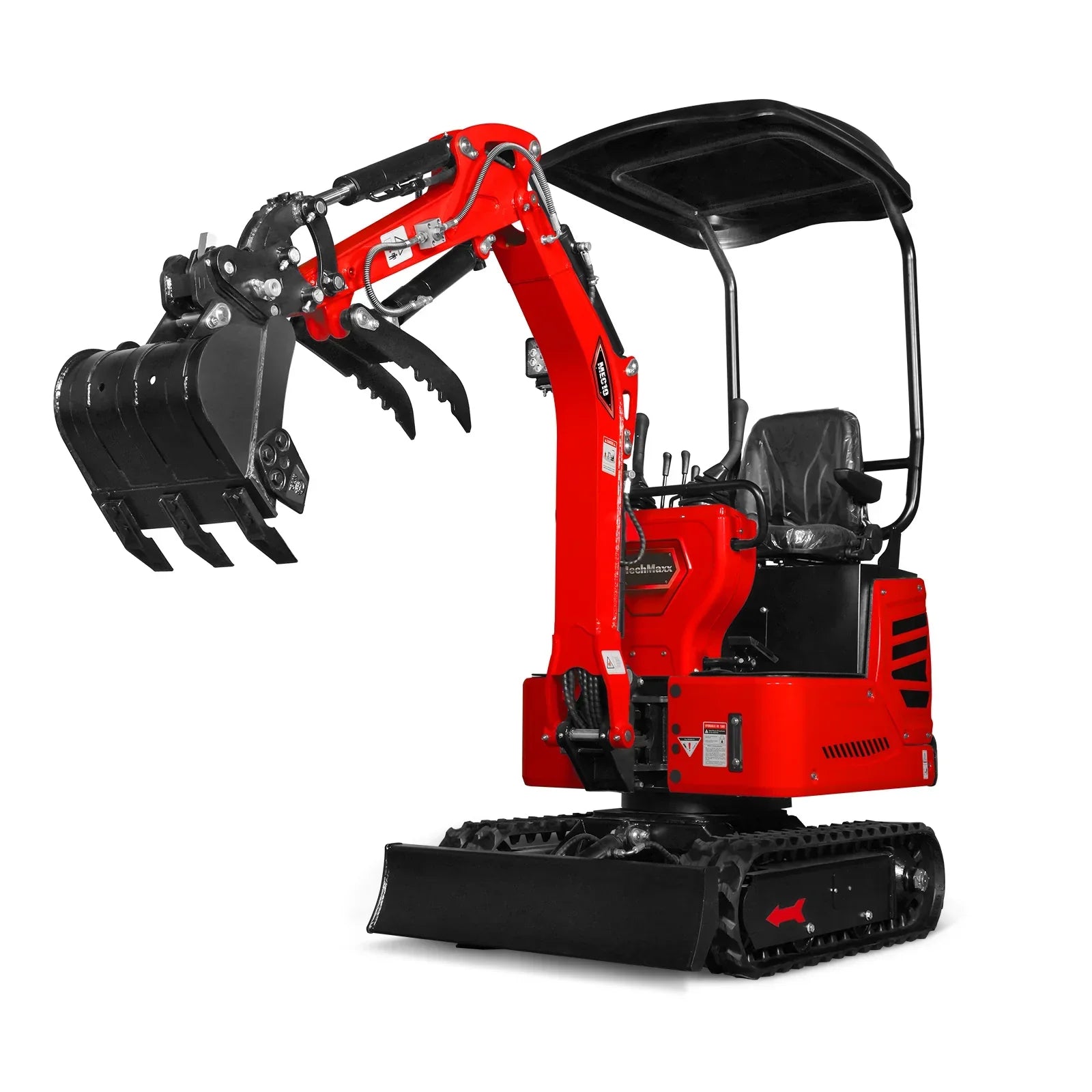

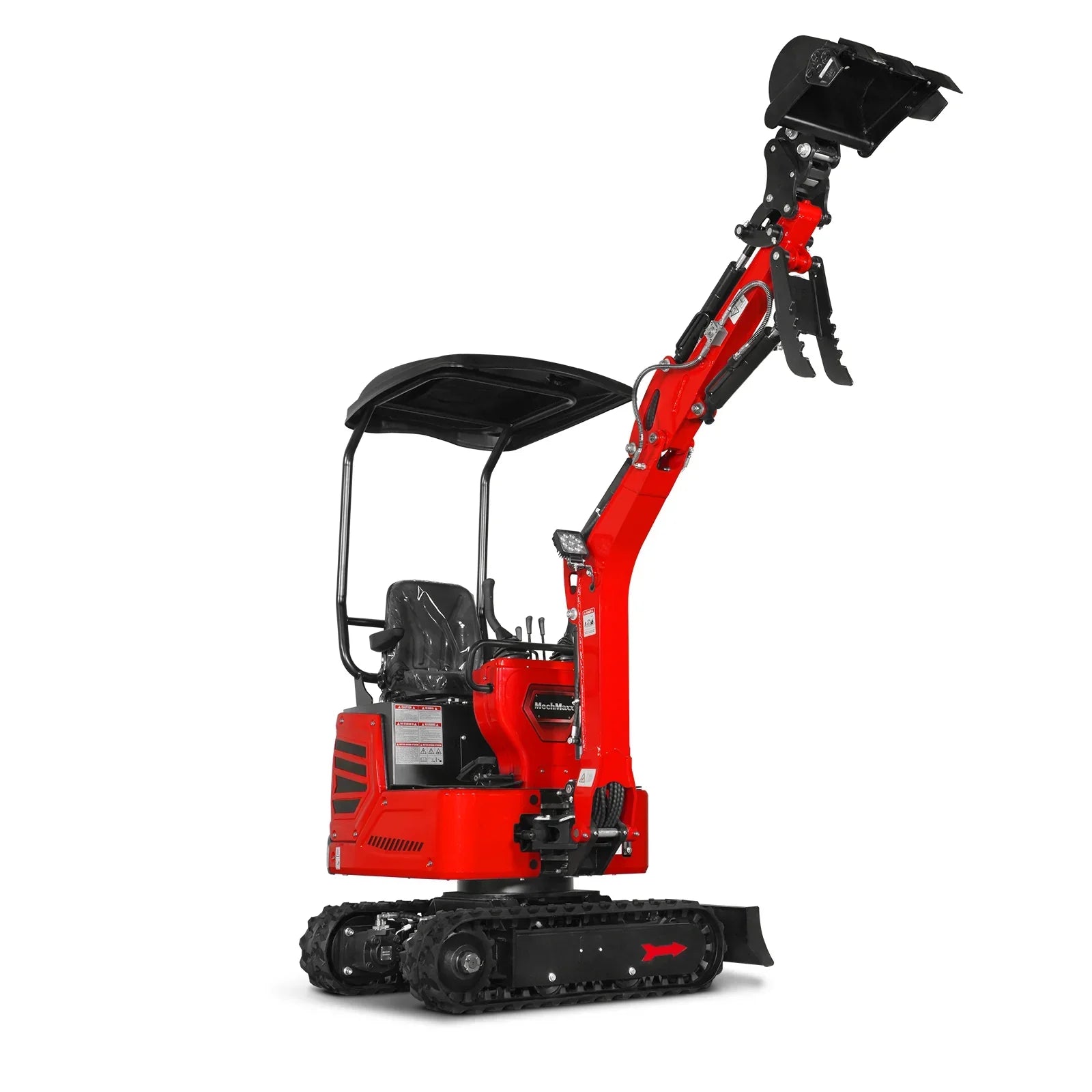

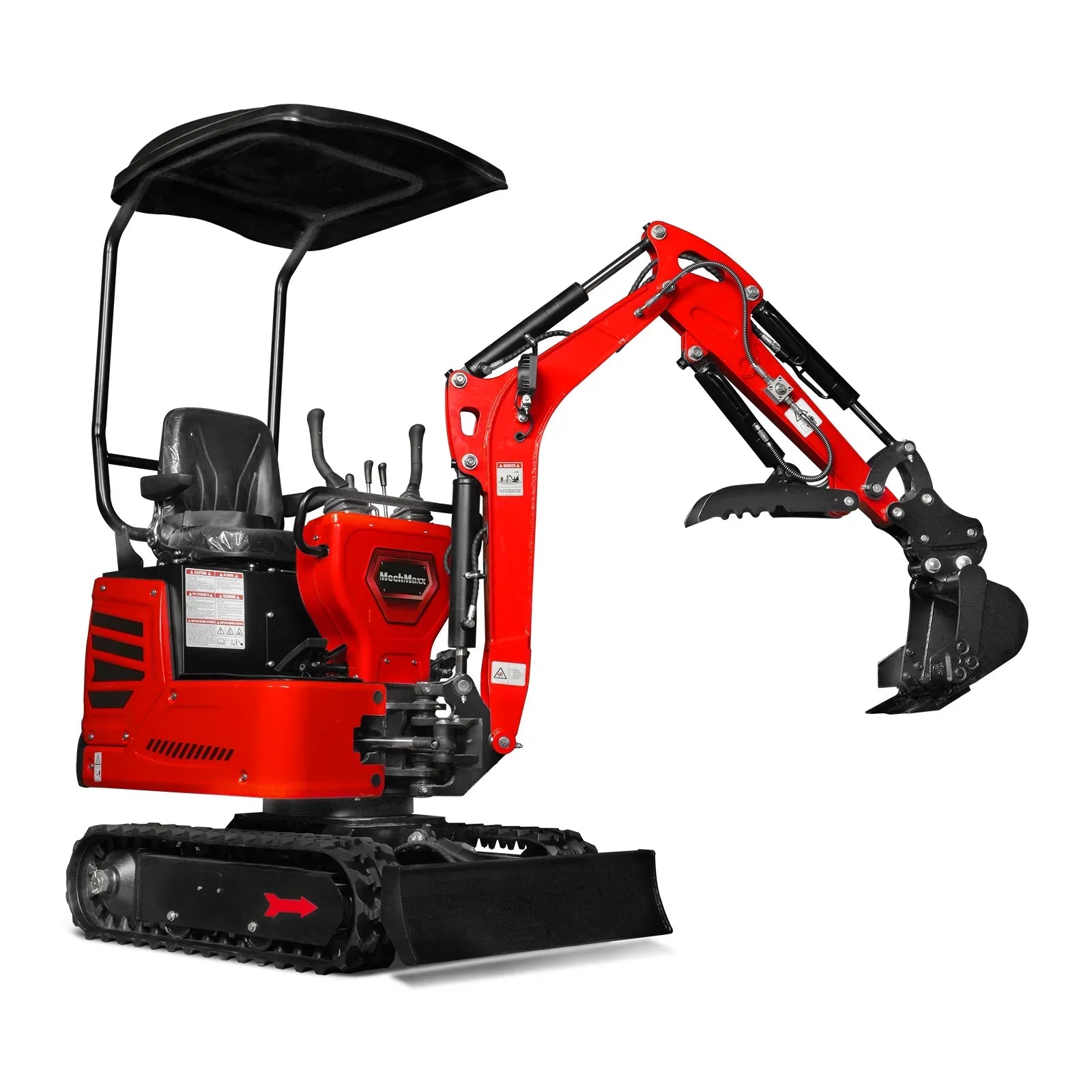

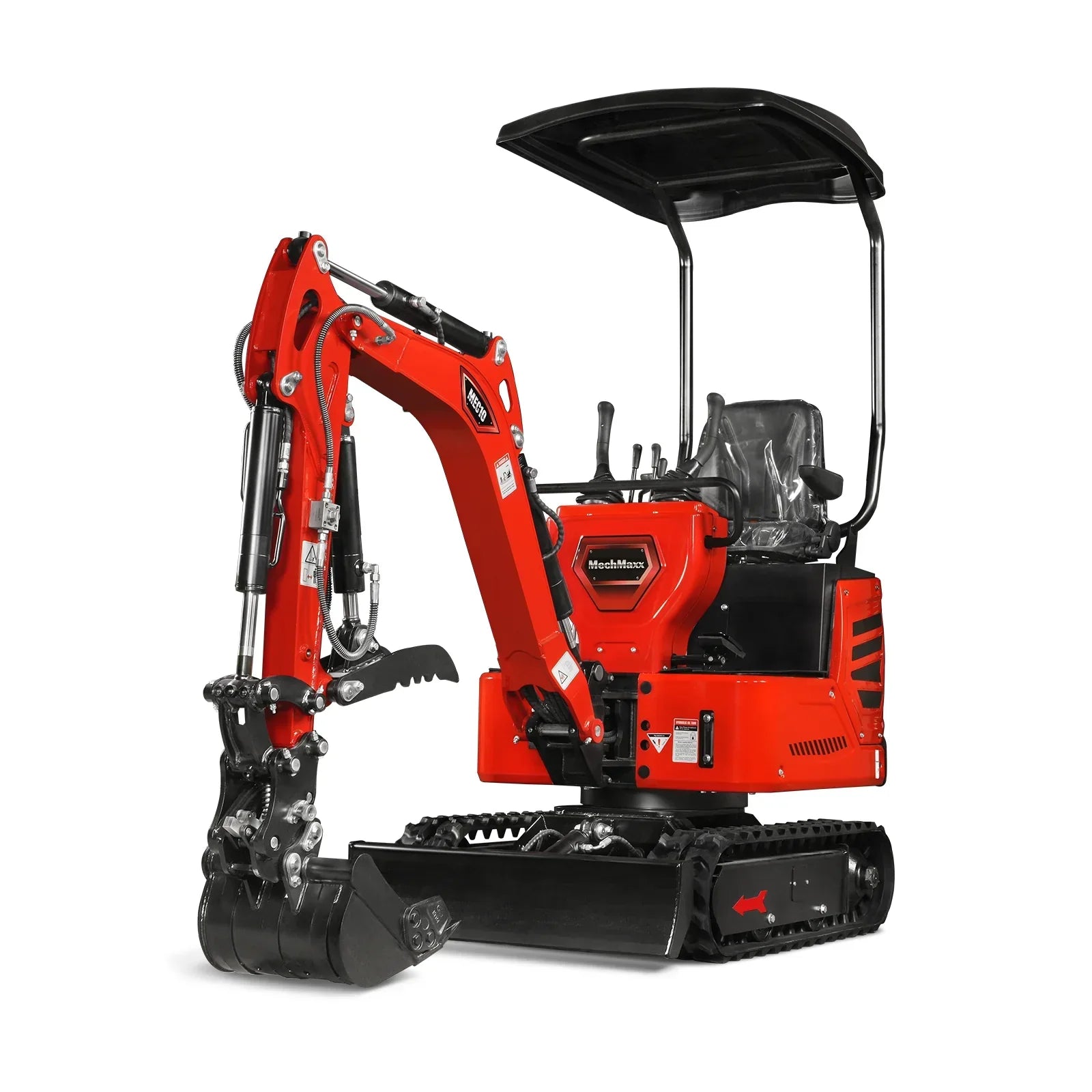

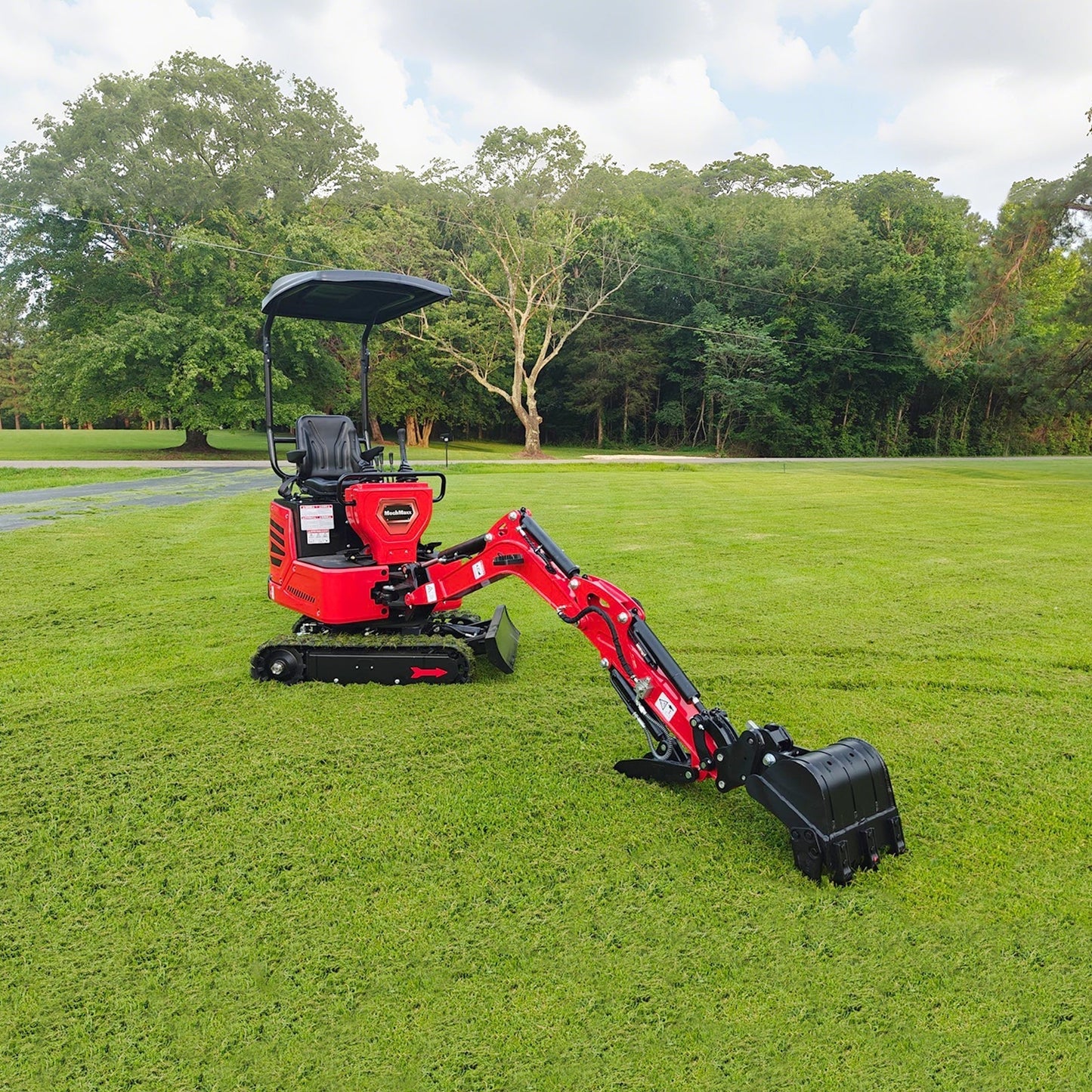

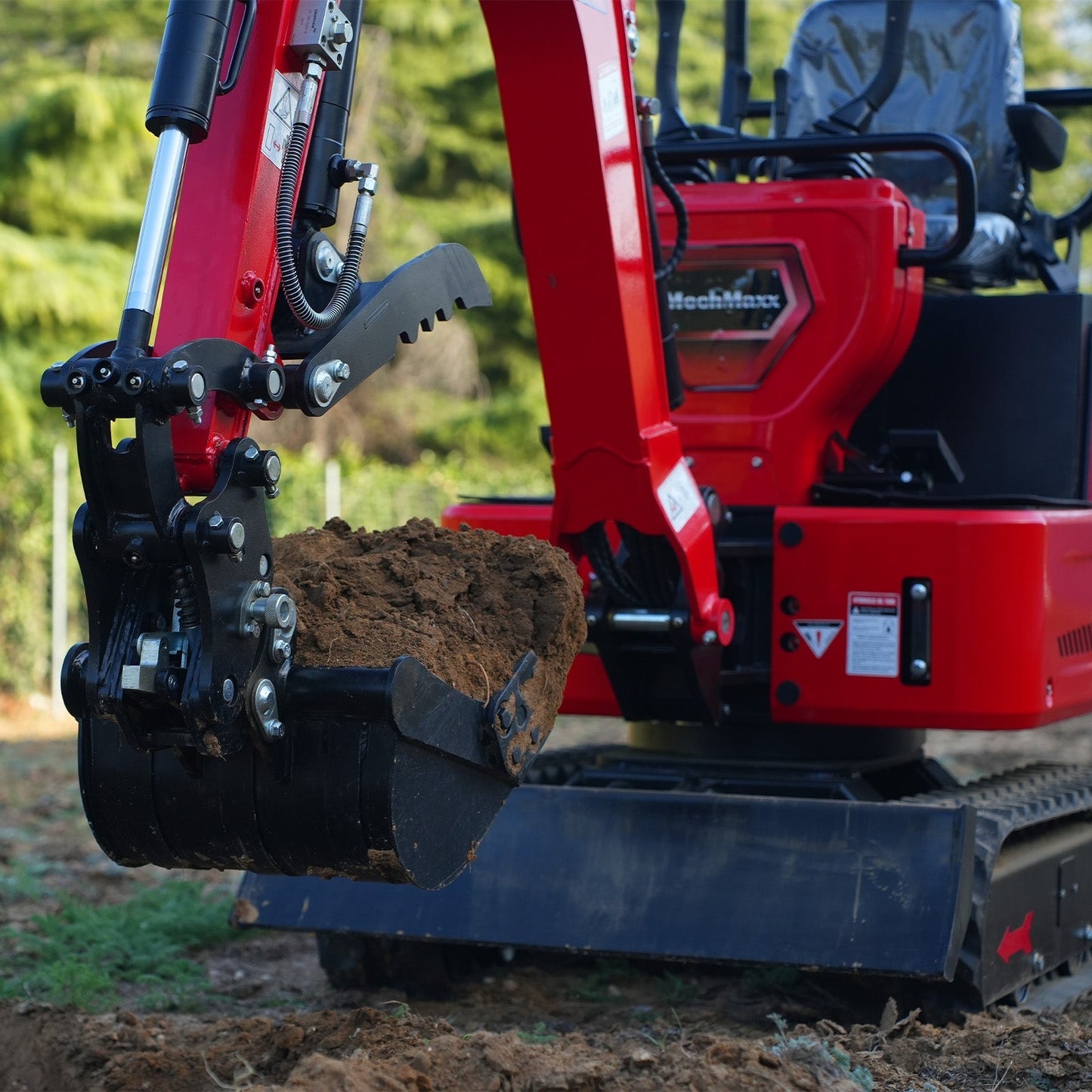

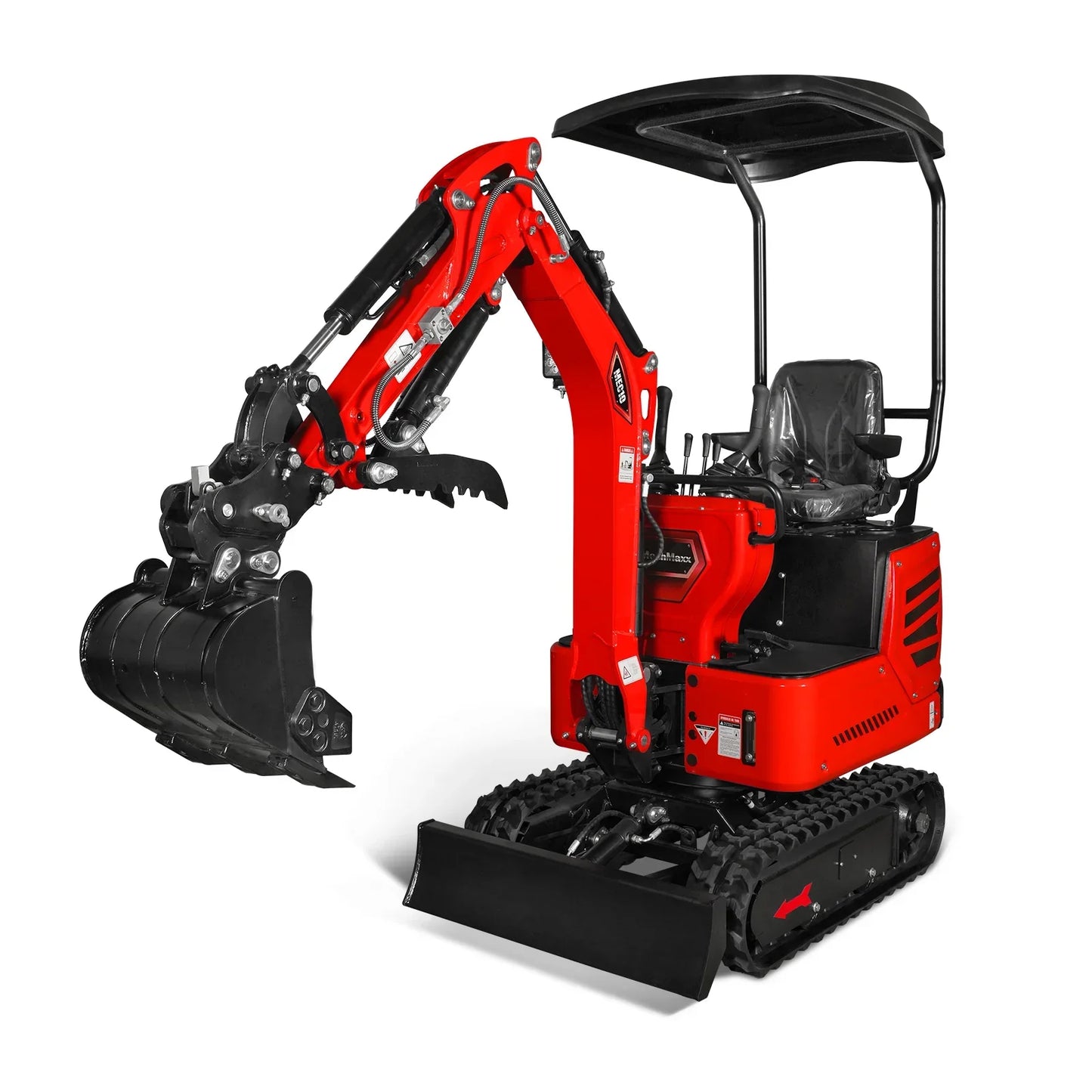

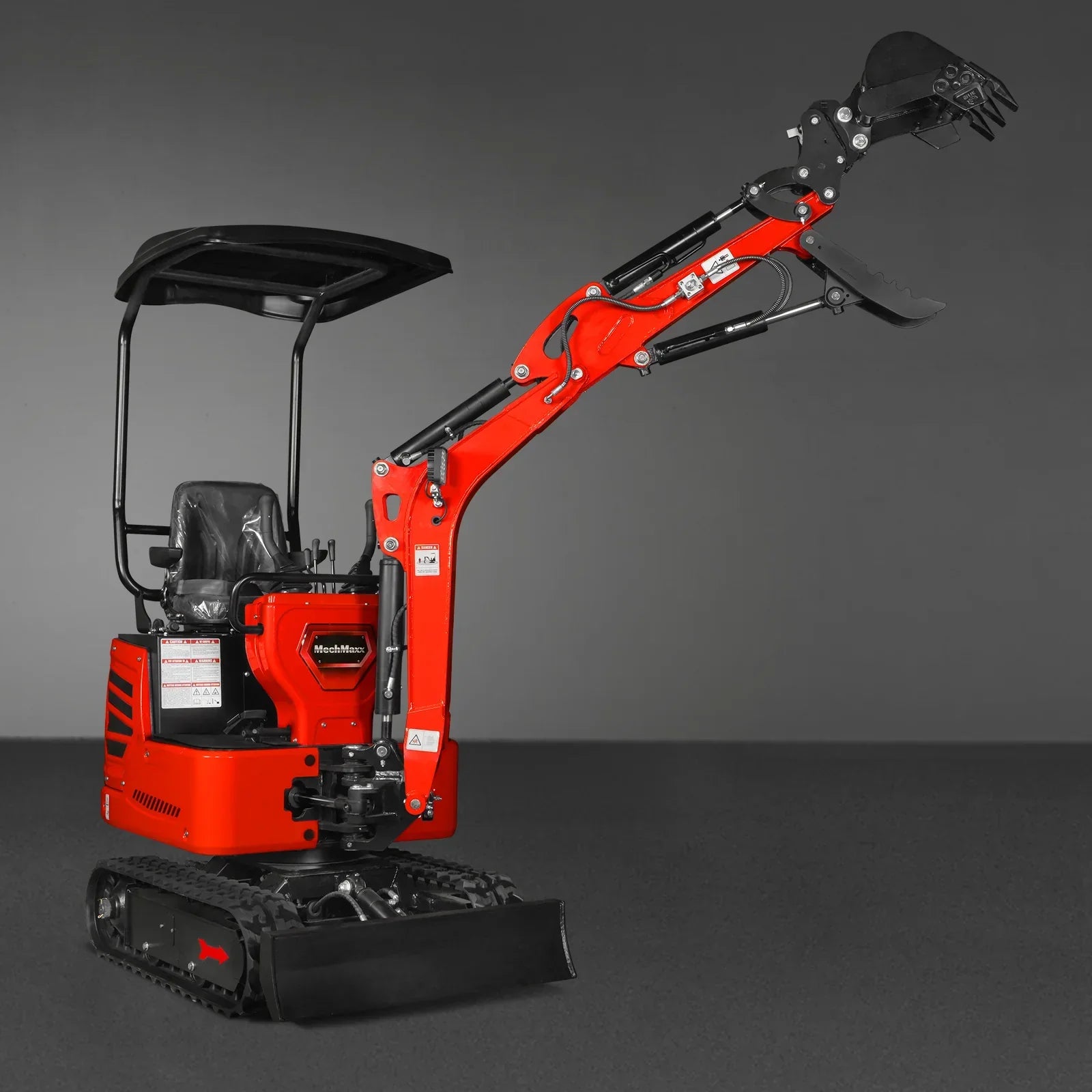

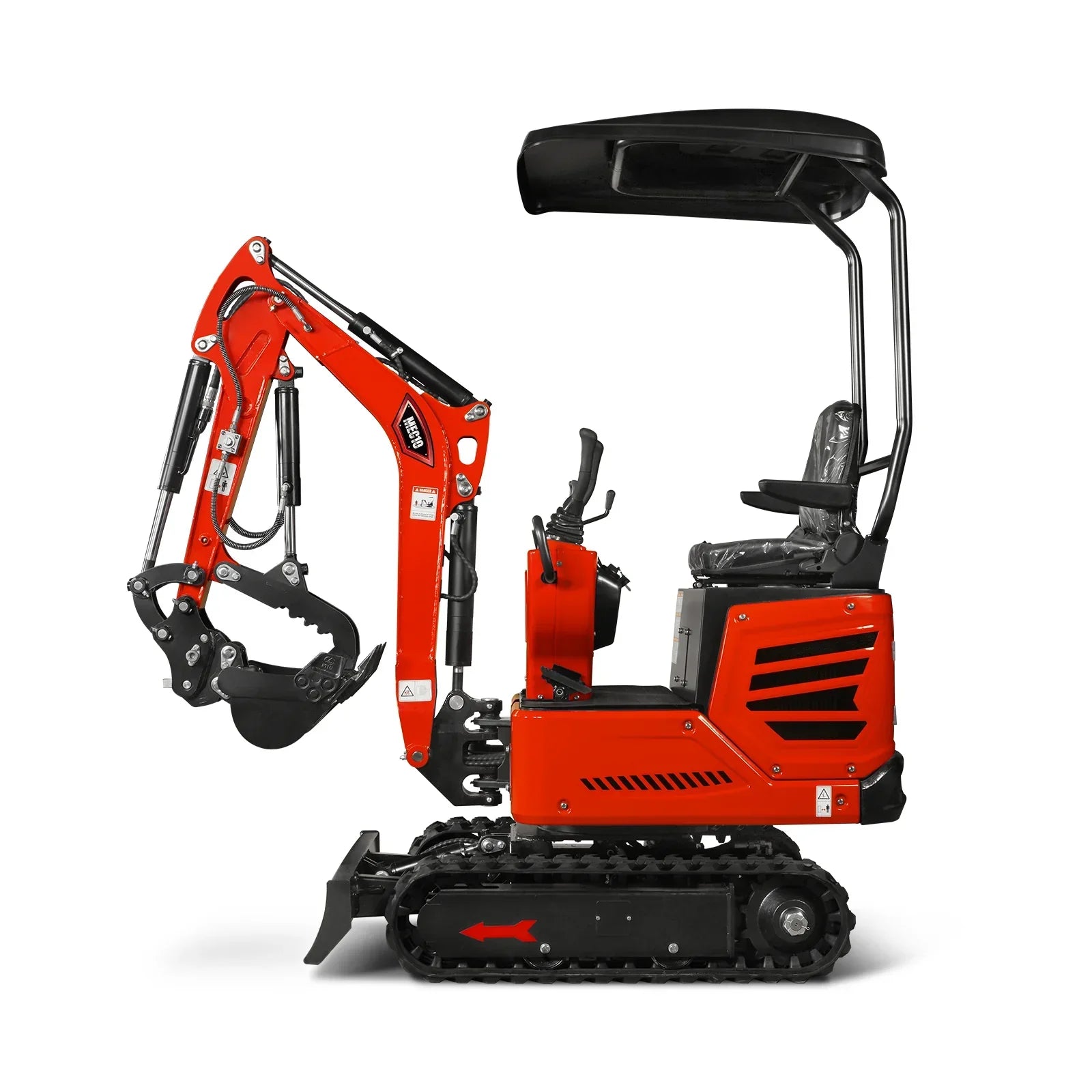

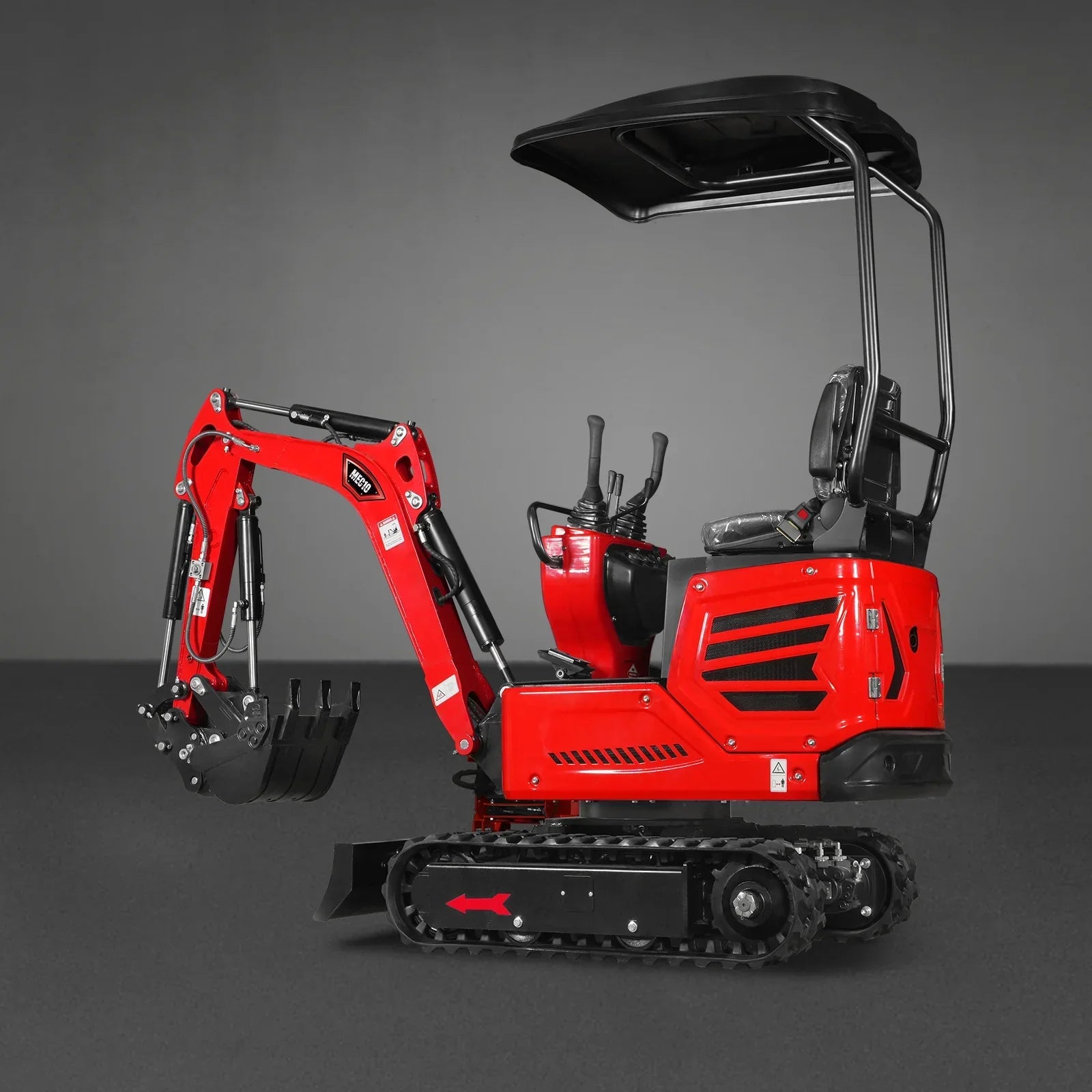

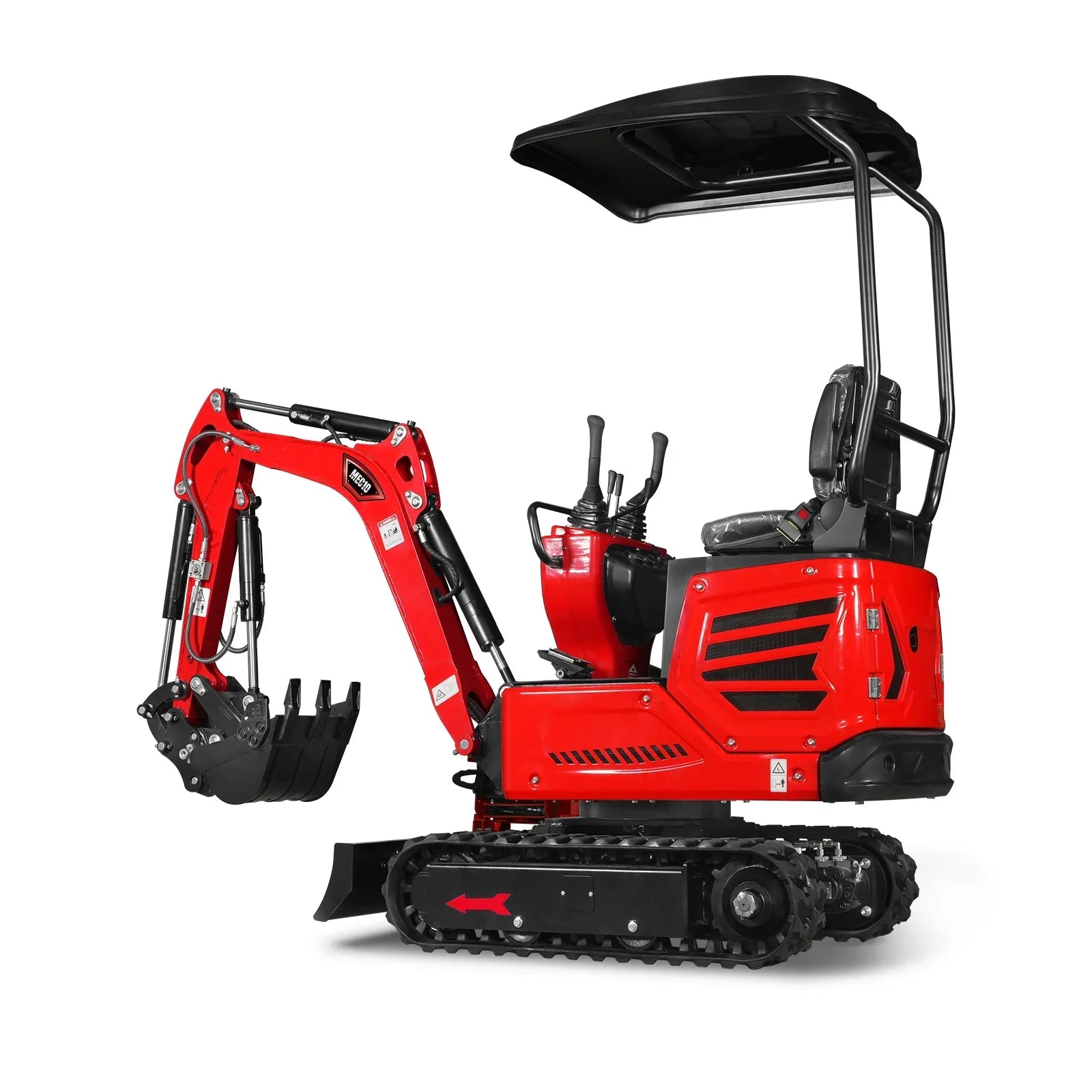

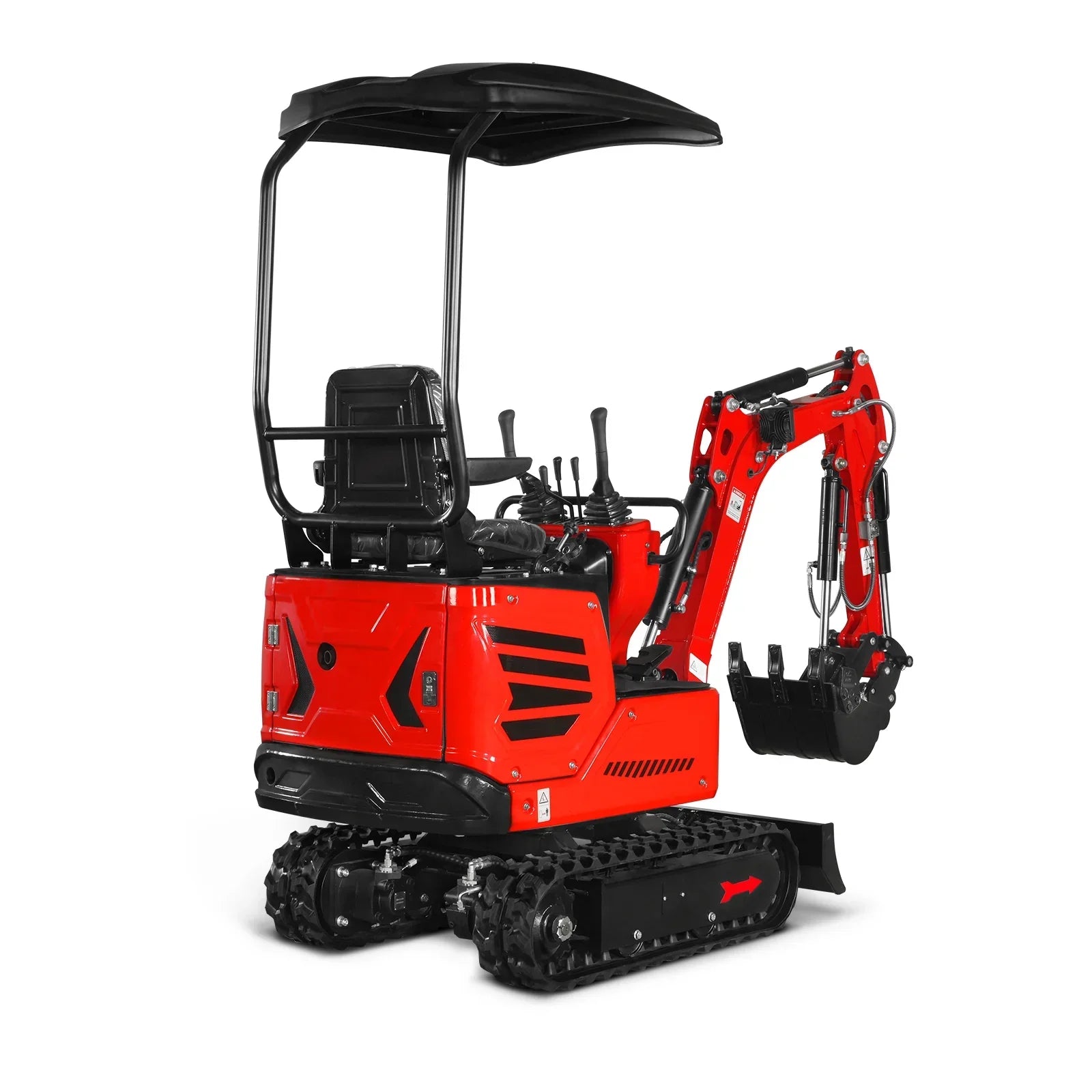

Mini Compact Excavator HONDA GX390 Engine, 65.7” Max. Digging Depth, 2280 LBS Operating Weight, MEC10

Name: Mini Compact Excavator HONDA GX390 Engine, 65.7” Max. Digging Depth, 2280 LBS Operating Weight, MEC10
Brand: Excavapro
SKU: 150530
Price: 4349.5 USD
Availability: InStock

$4,349.50 USD

Sale Sold out

Shipping calculated at checkout.

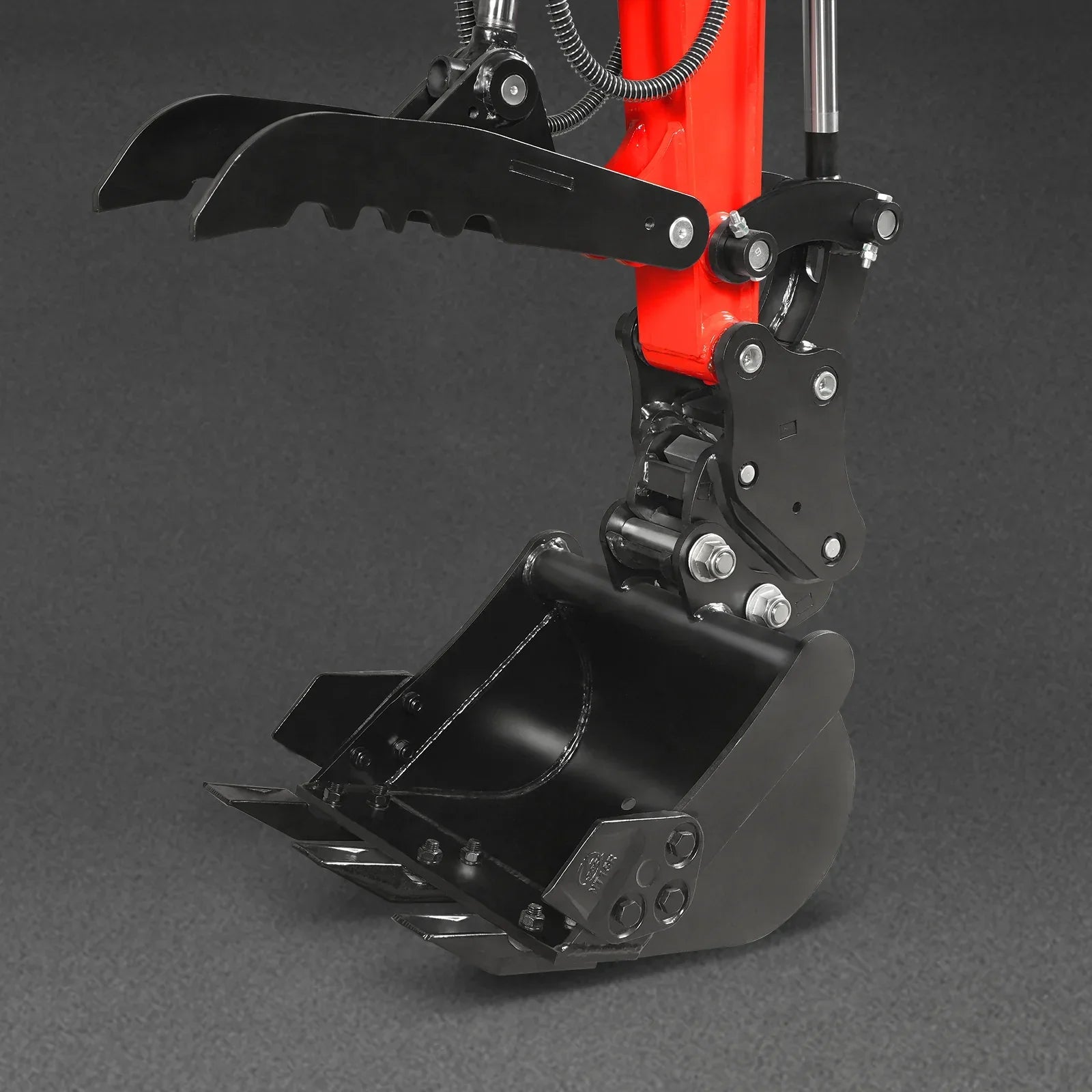

Standard Bucket Capacity	0.7 cu-ft	Auxiliary Std Flow	5.7 gal/min
Standard Bucket Width	15 in	Max. Tractive Force	3035 lbf
Max. Travel Speed	0.75 mile/h	Arm Digging Force	1191 lbf
Slewing Speed	11 rpm	Bucket Digging Force	1619 lbf
Max. Gradeability	30°	Rated Lift Capacity	728 lb
Track Ground Pressure	5.1 psi	Lift Radius	80 in

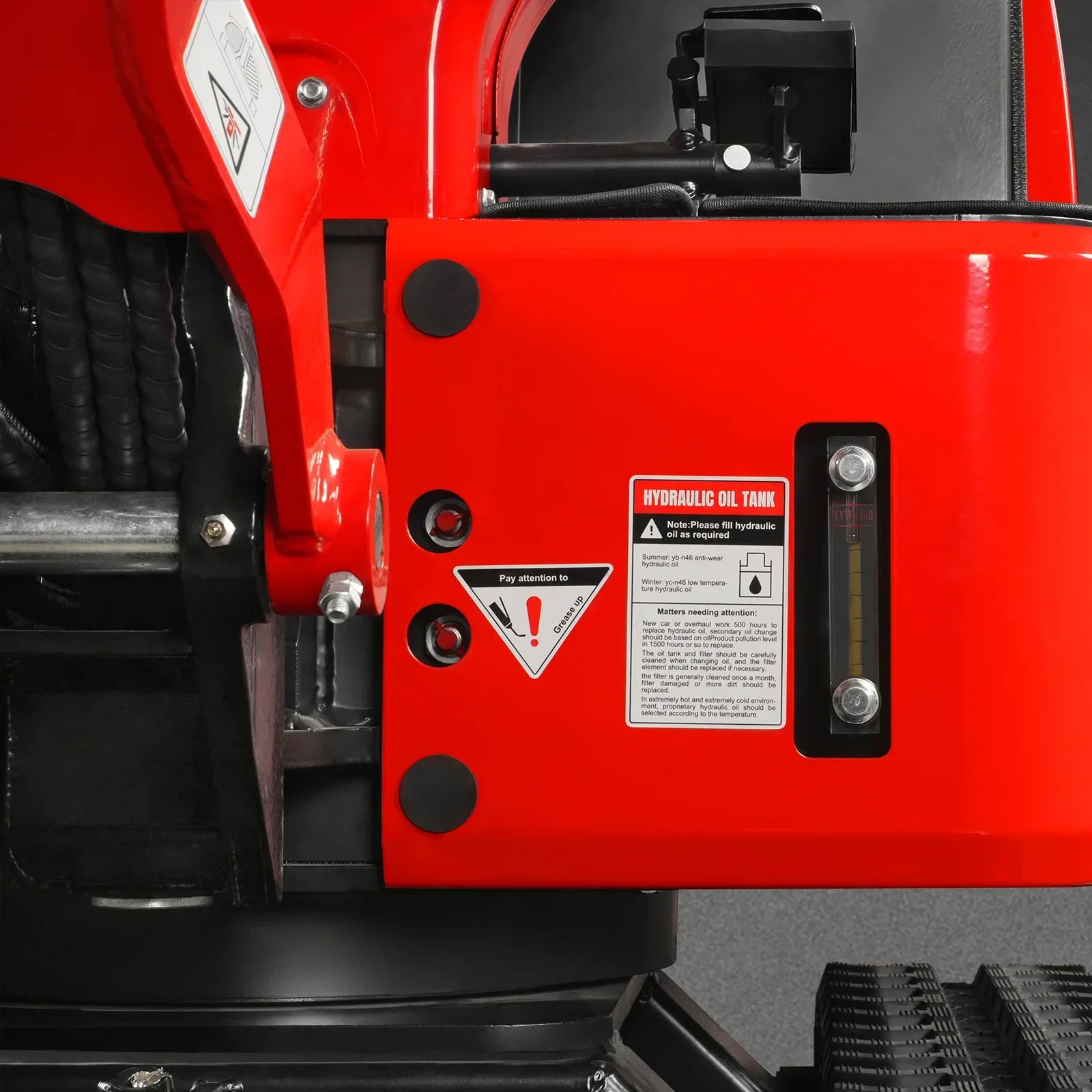

Hydraulic Oil Tank Capacity	3.96 gal	Operating Weight	2280 lb

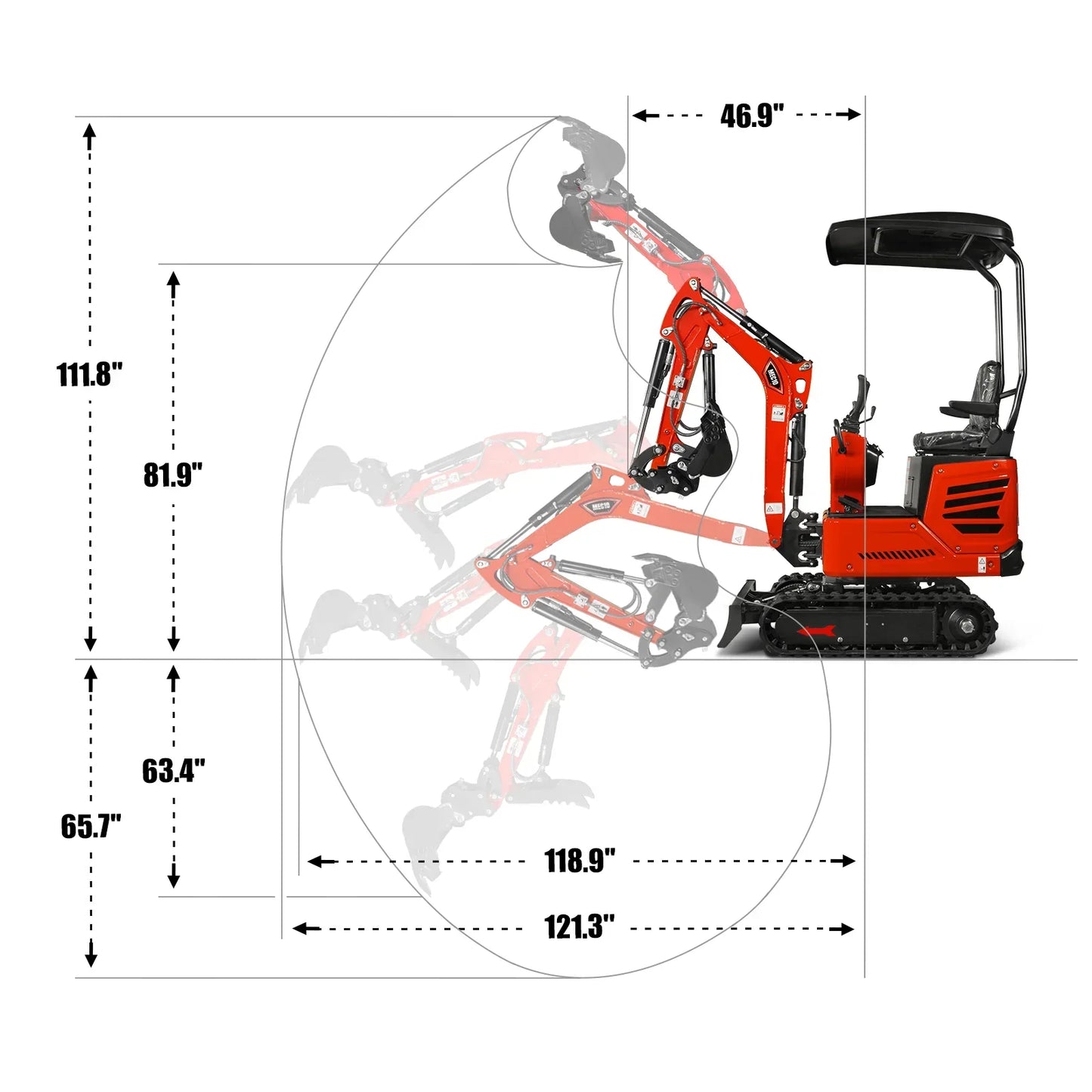

Operating Range
Max.Digging Radius On Ground	119 in	Max. Vertical Digging Depth	63.3 in
Max. Digging Depth	65.7 in	Min. Turning Radius	46.8 in

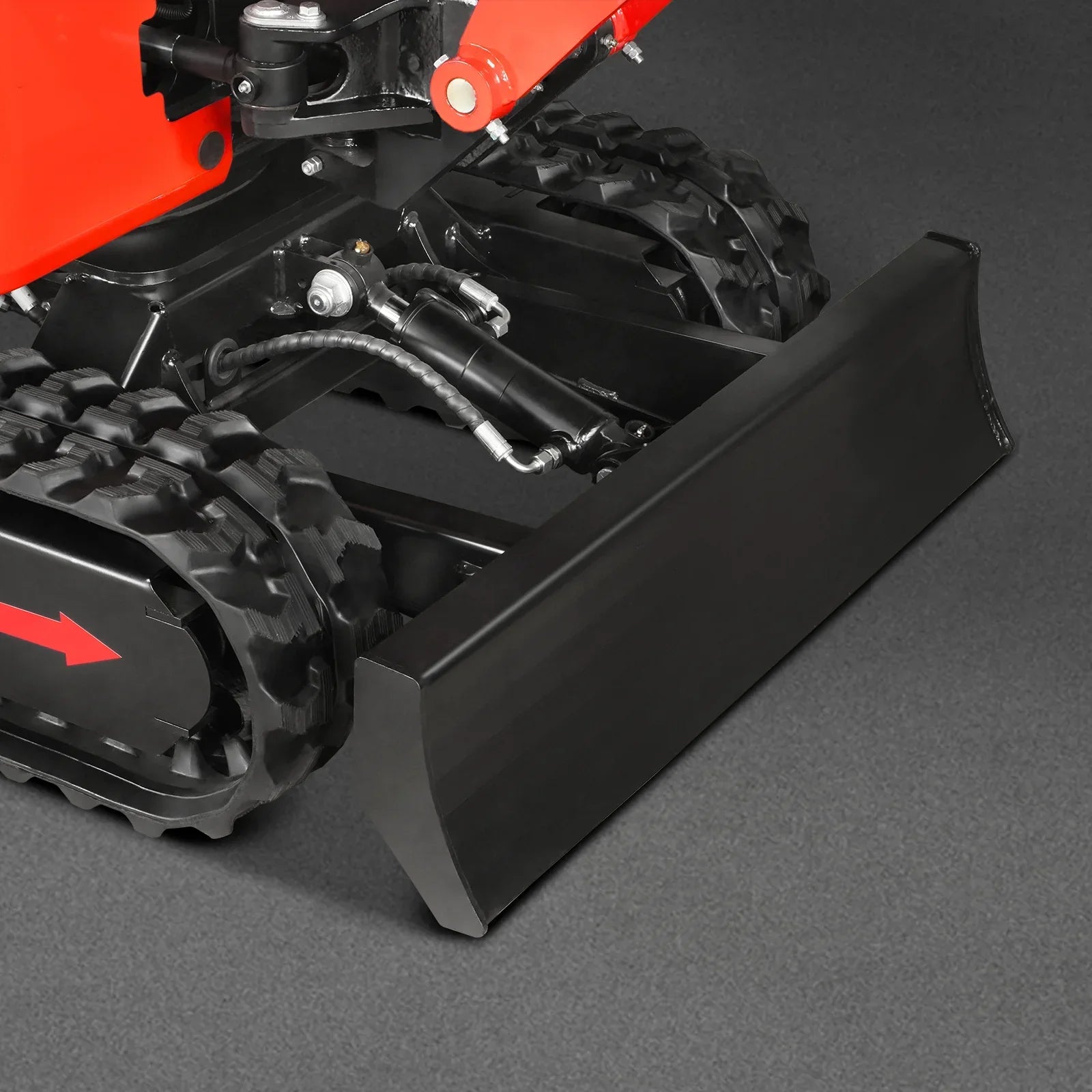

Overall Operating Height (Fully Raised)	111.8 in	Max. Lifting Height Dozer Blade	5.9 in
Max. Digging Radius	121 in	Max. Depth Dozer Blade	7.4 in
Max. Unloading Height	81.8 in

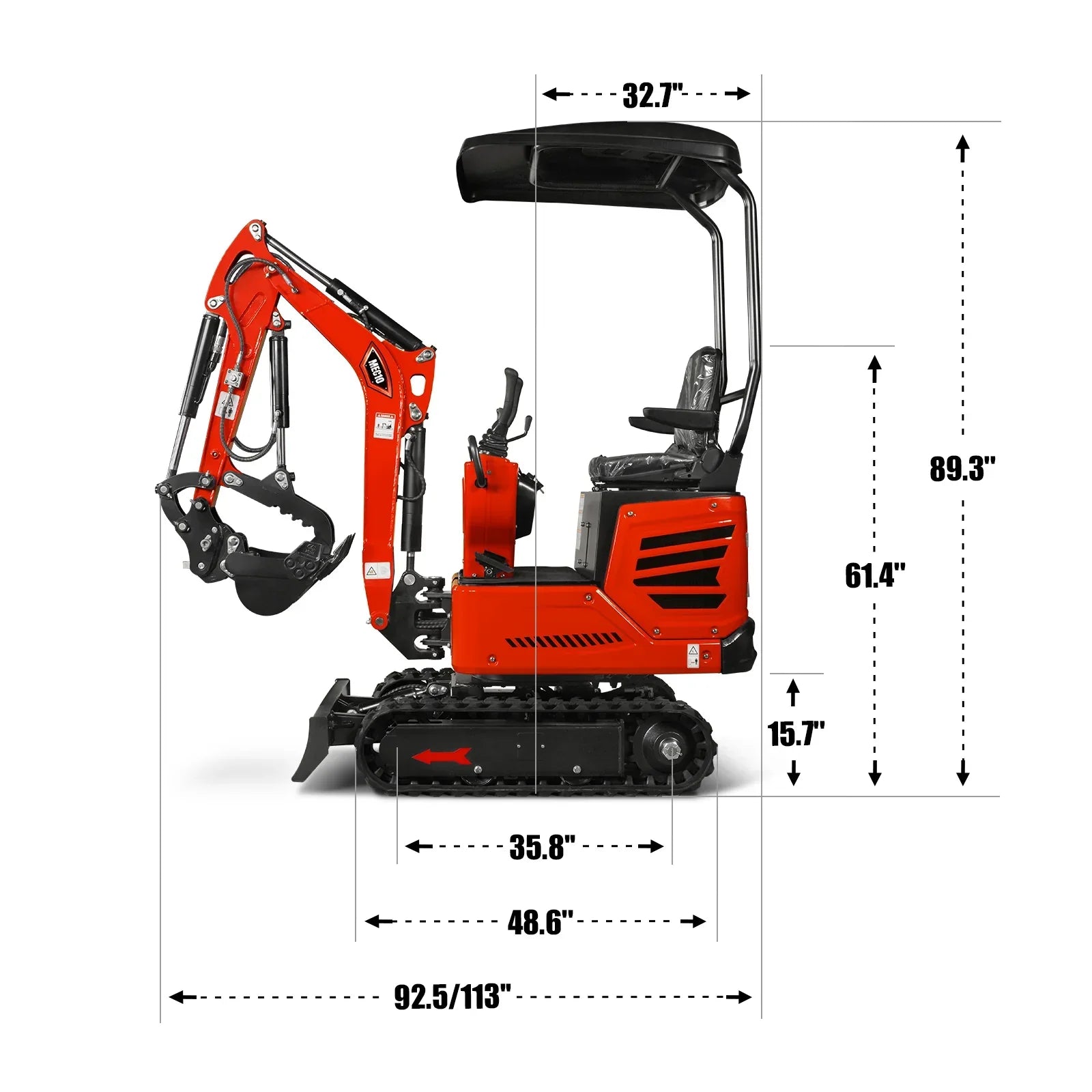

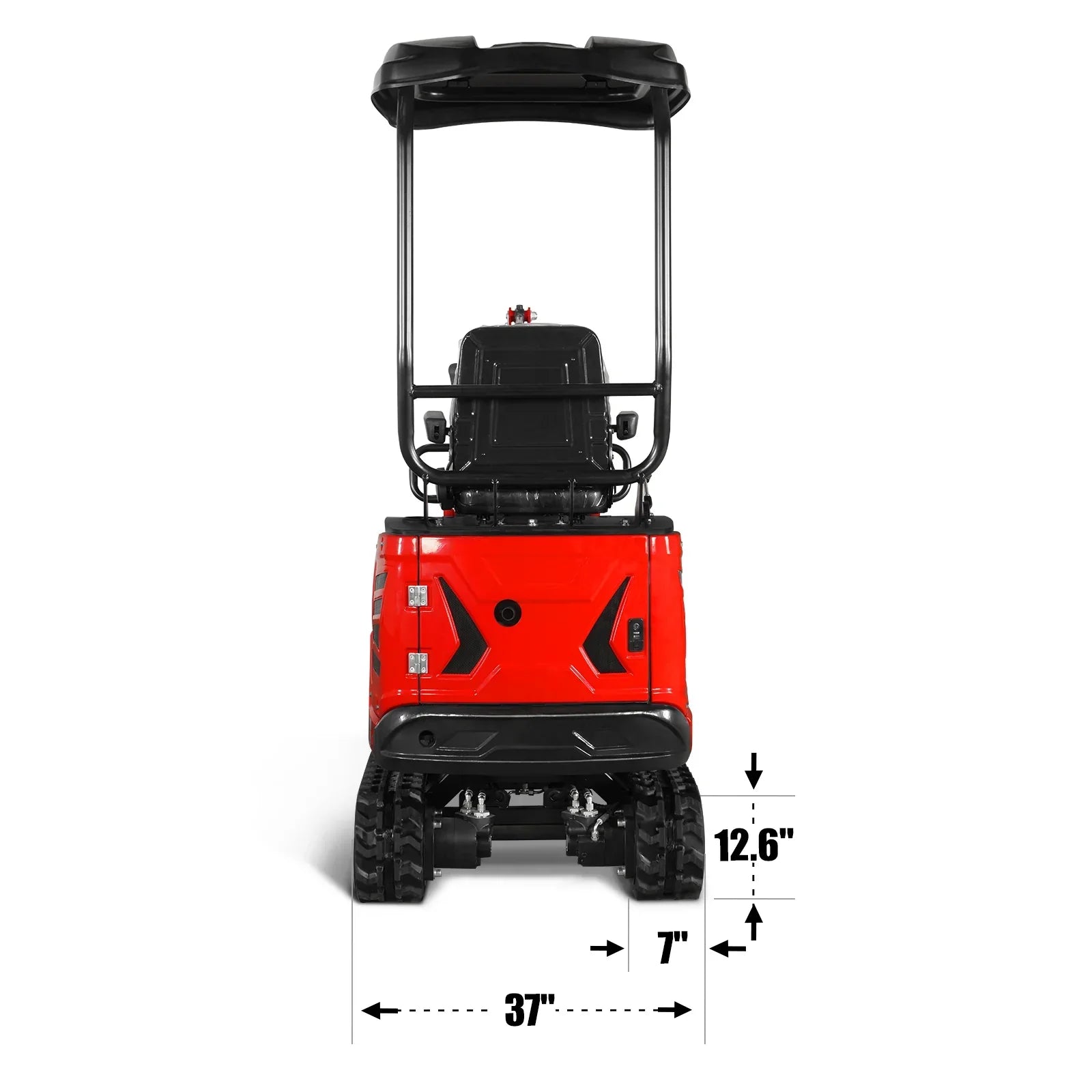

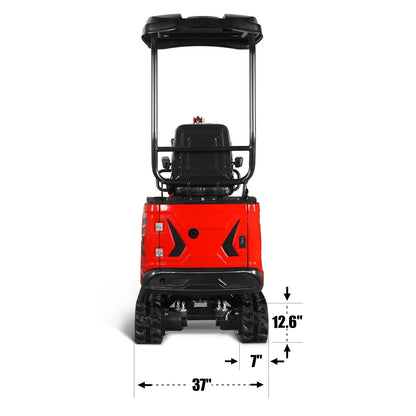

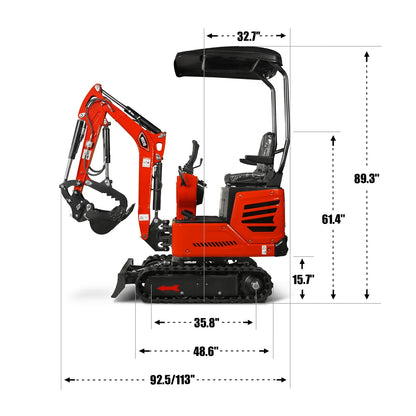

Main Dimensions
Wheel Track	35.8 in	Track Height	12.6 in
Track Length	48.6 in	Transportation Length	92.5/113 in
Upper Chassis Ground Clearance	15.7 in	Height Of Seat To Ground	61.4 in
Counterweight Turning Radius	32.6 in	Overall Height	89.3 in

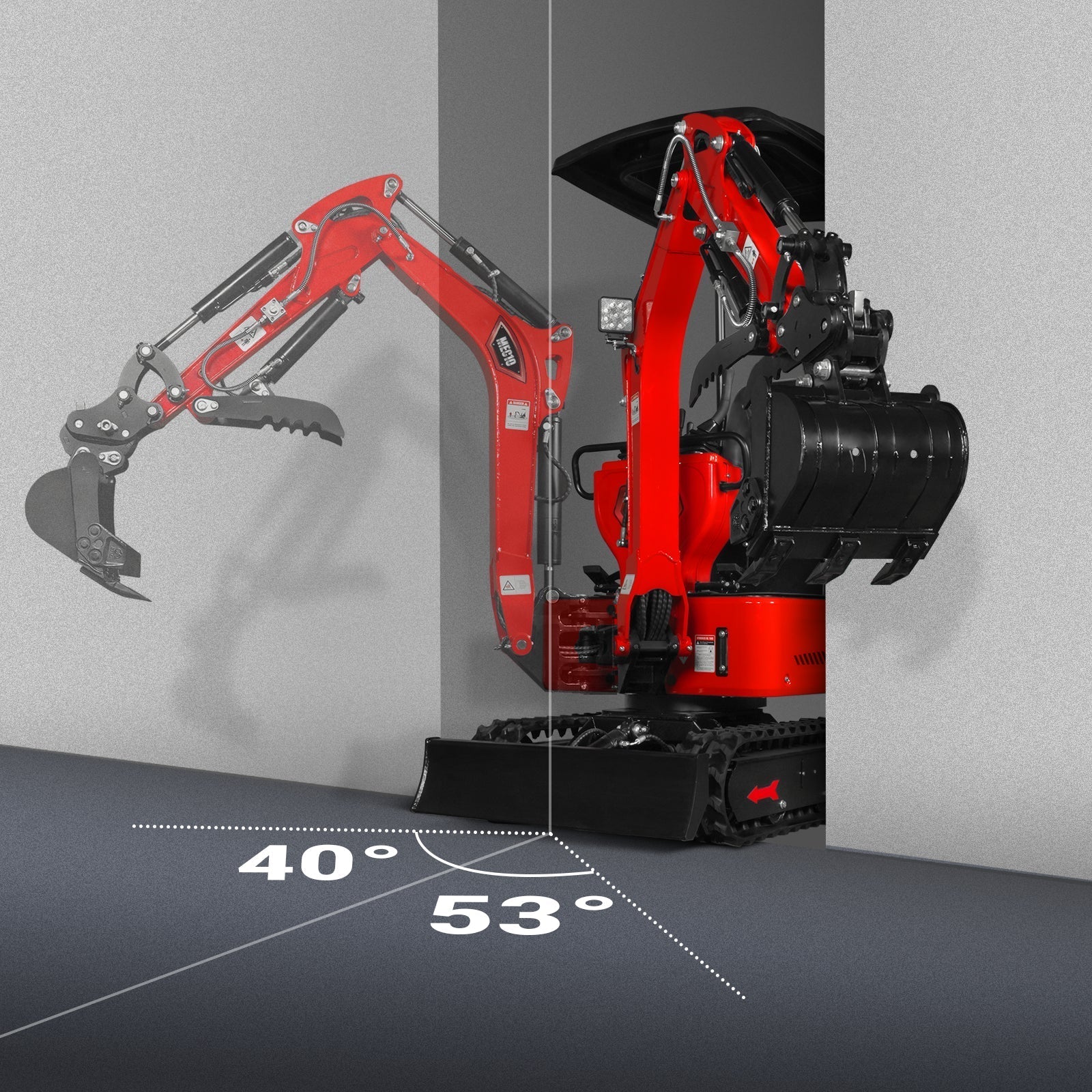

Chassis Width	37 in	Boom Swing-Right	40°
Track Width	7 in	Boom Swing-Left	53°

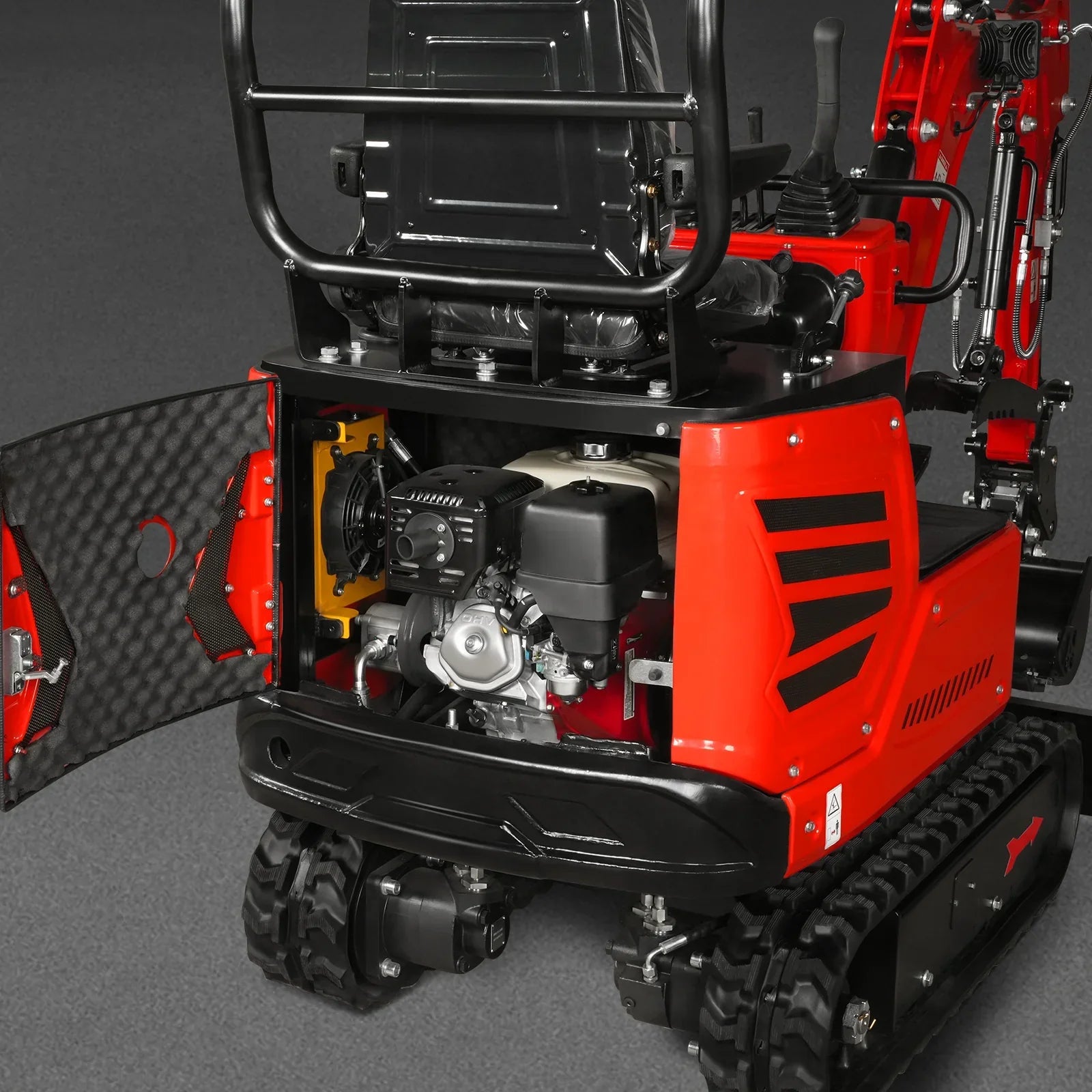

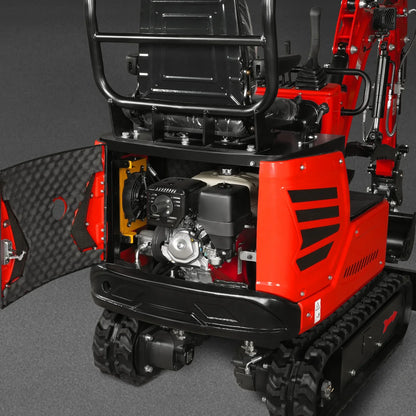

Engine
Model	Honda GX390	Max. Net Torque	26.5 N.m/2500 RPM
Displacement	389 cc; 11.7 HP	Fuel Tank Capacity	1.6 gal
Engine Type	4-stroke, overhead valve, single cylinder	Engine Oil Capacity	0.3 gal
Start Type	Electric start	Engine Oil Type	10W-30
Rated Power	8.7 KW/3600 RPM	Warranty	1 Year

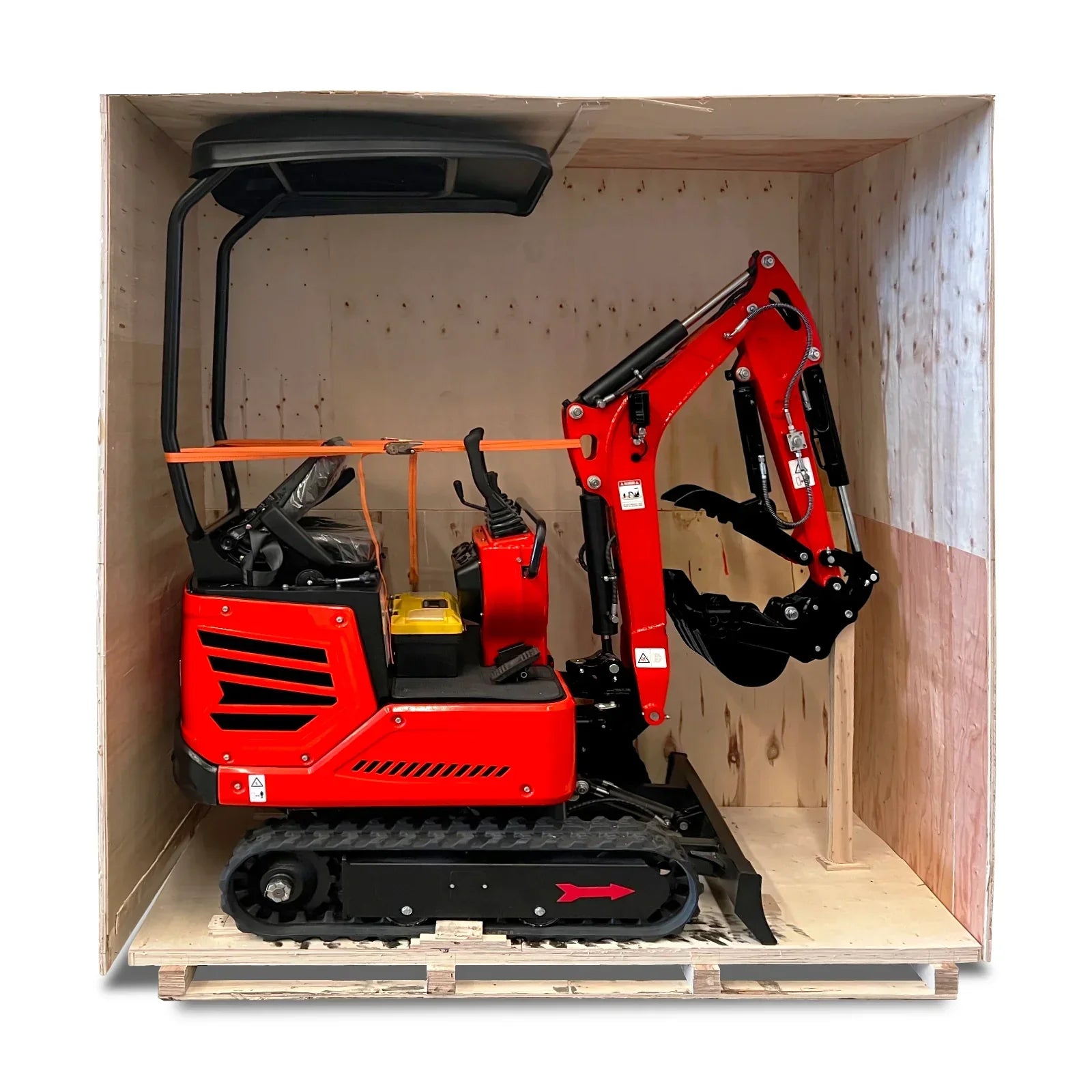

Package
Package Method	Plywood Case	Weight (N.W./G.W.)	2100/2376 lb
Dimensions	91x40x98 in

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
