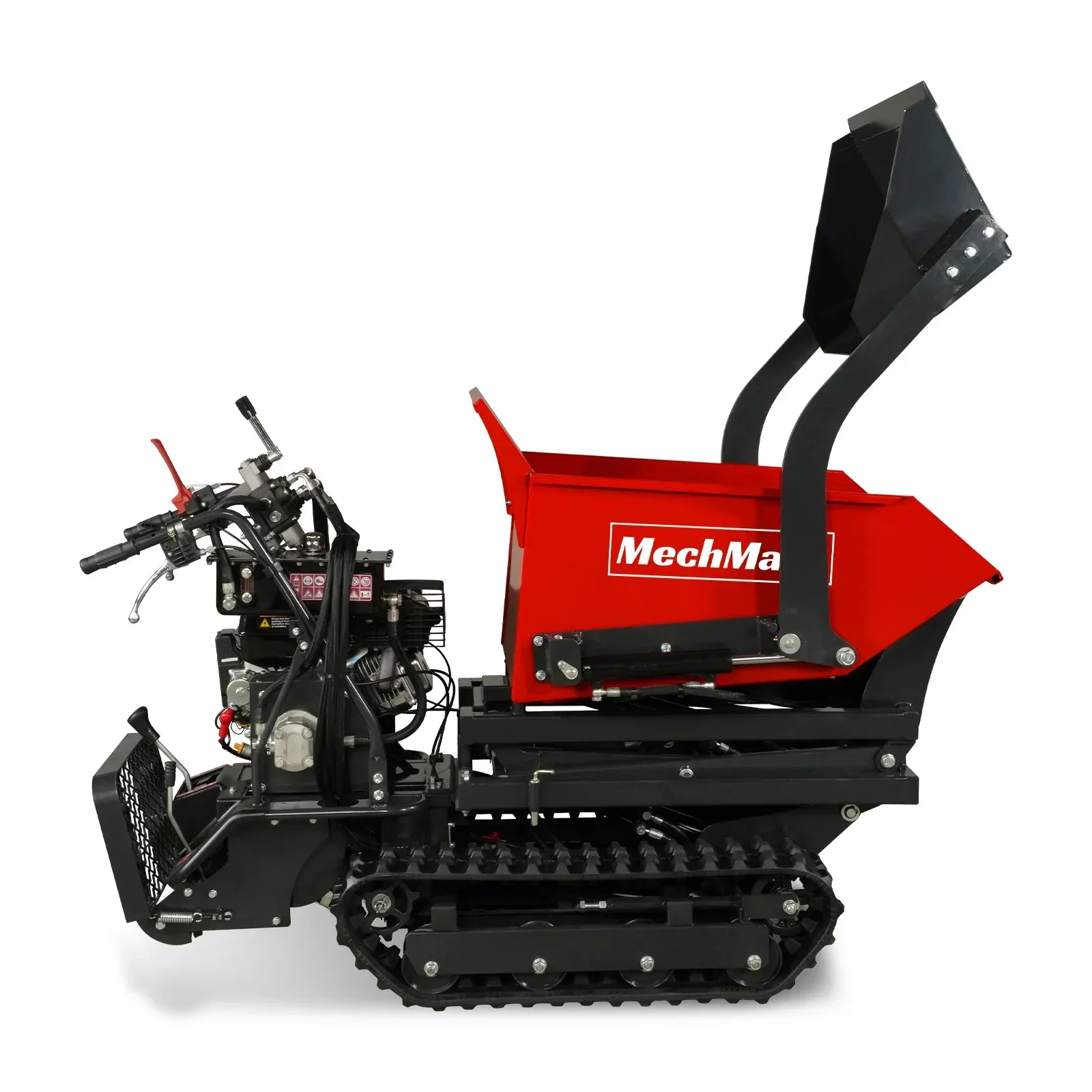

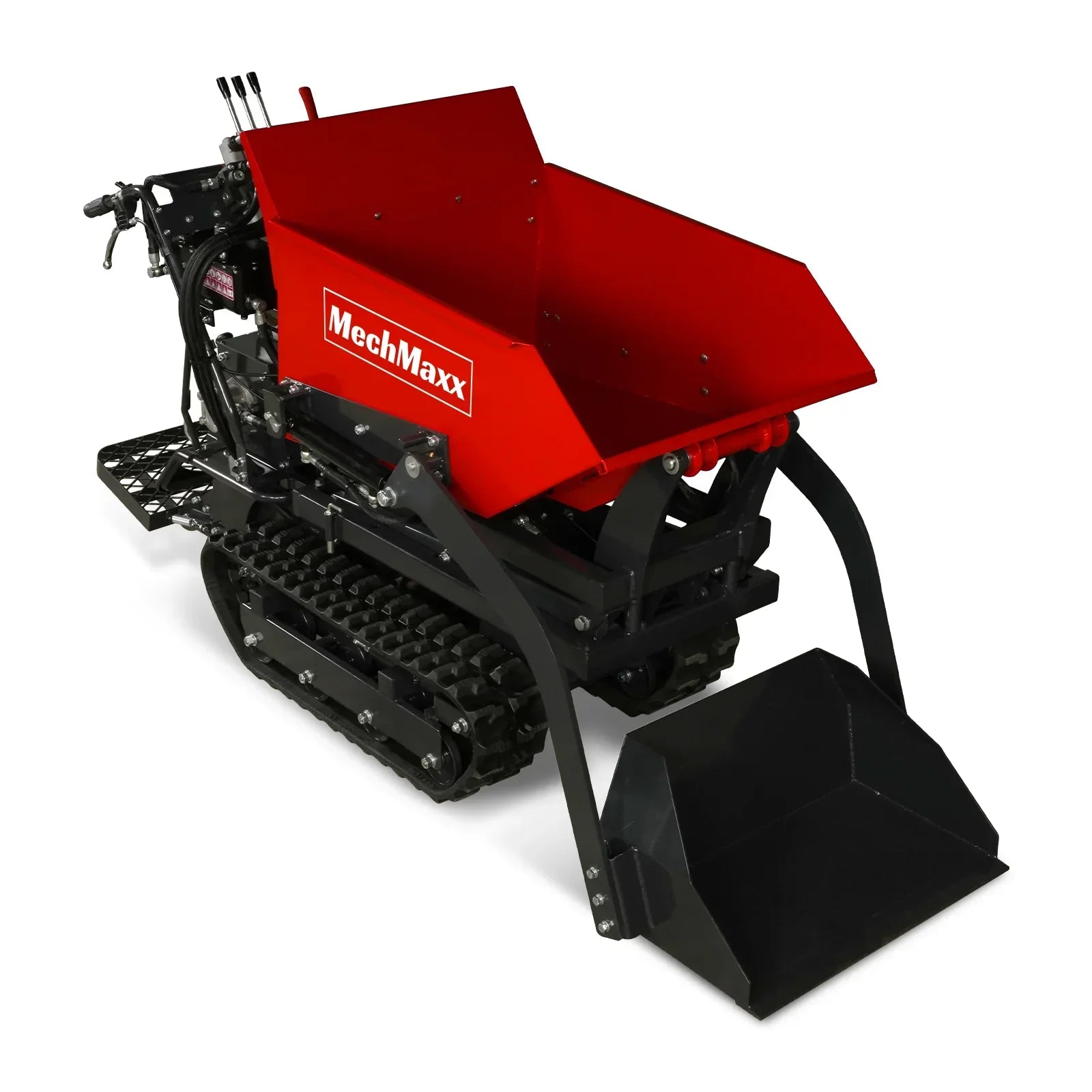

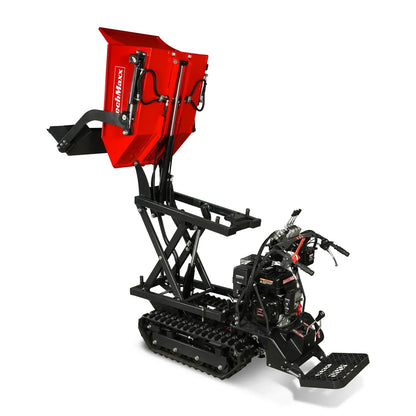

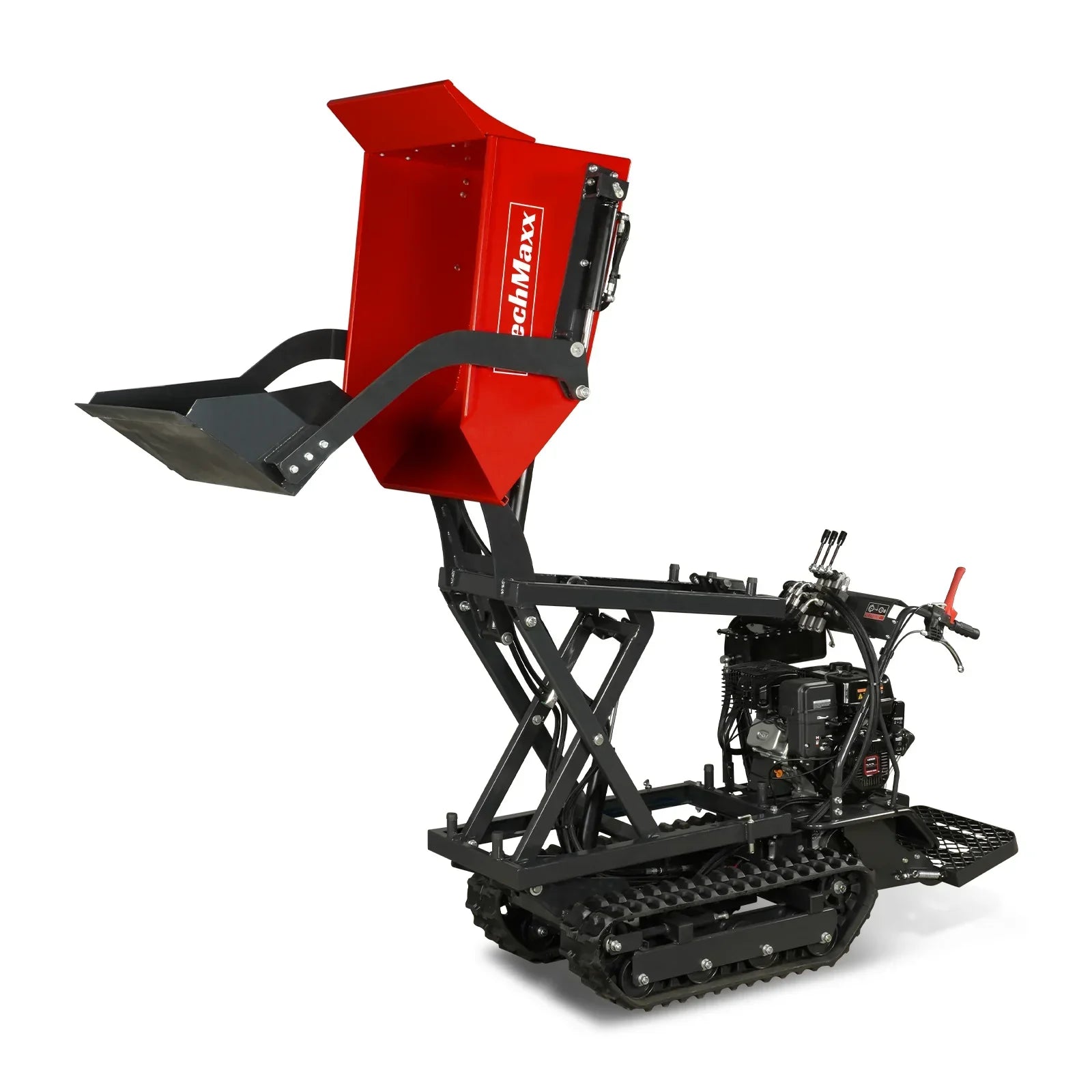

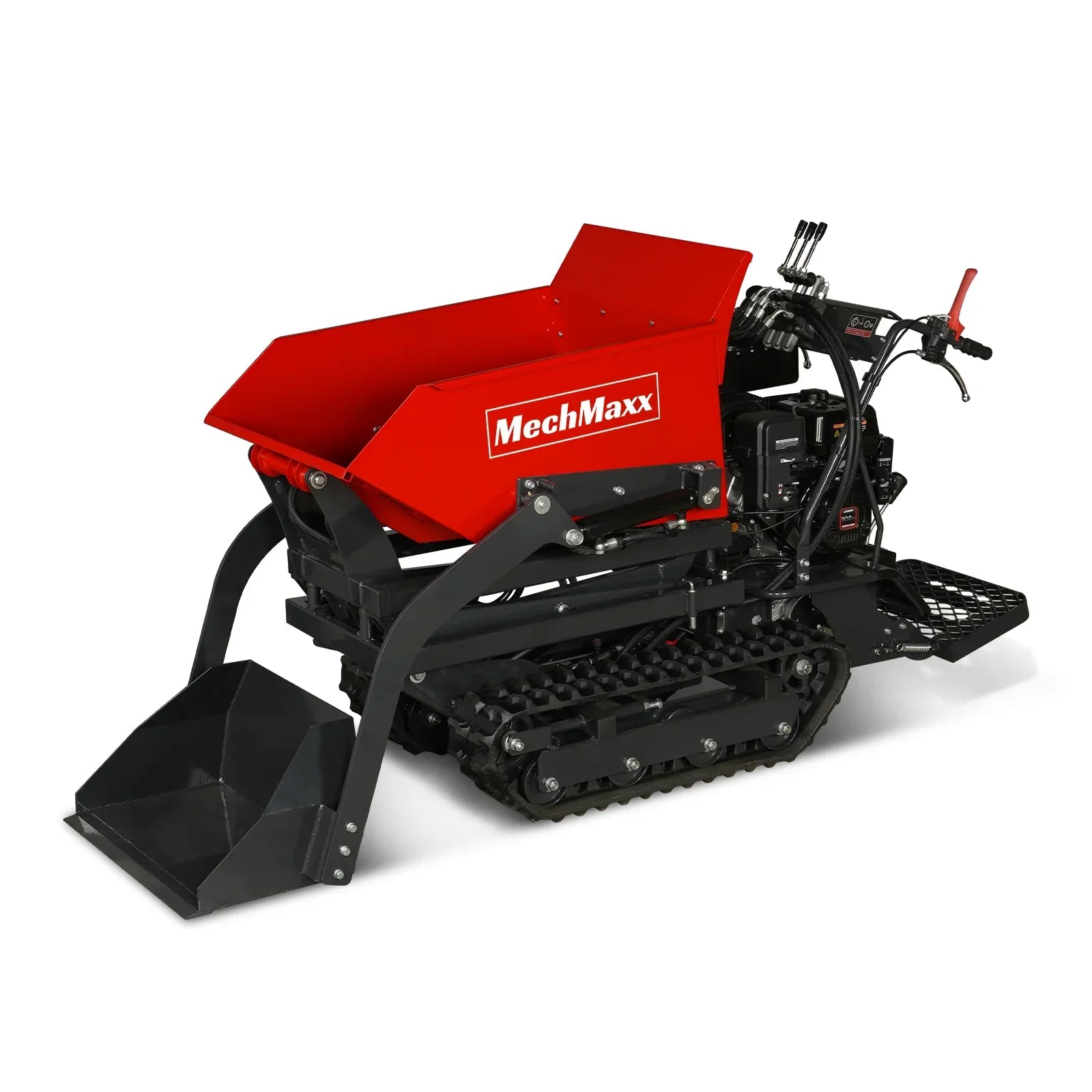

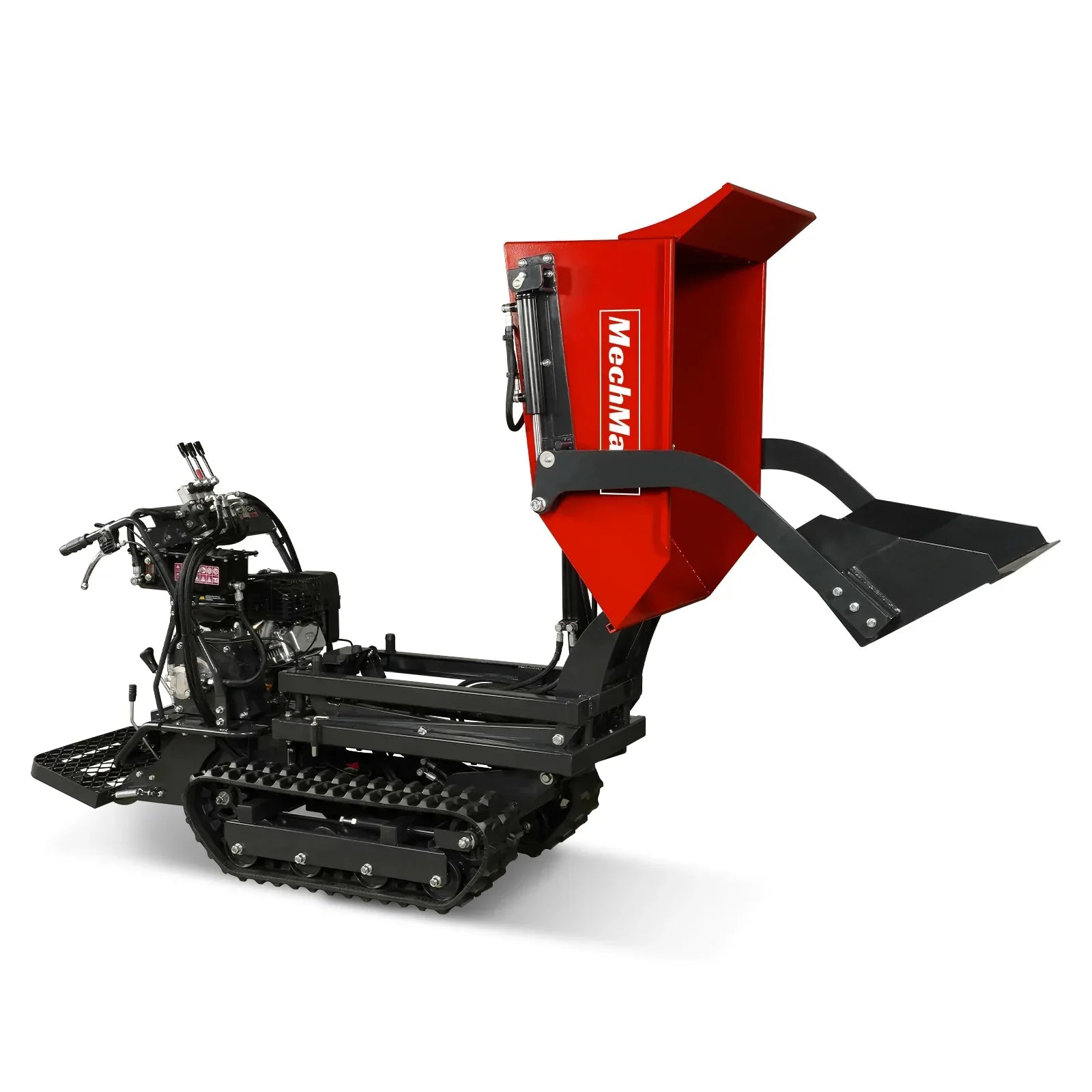

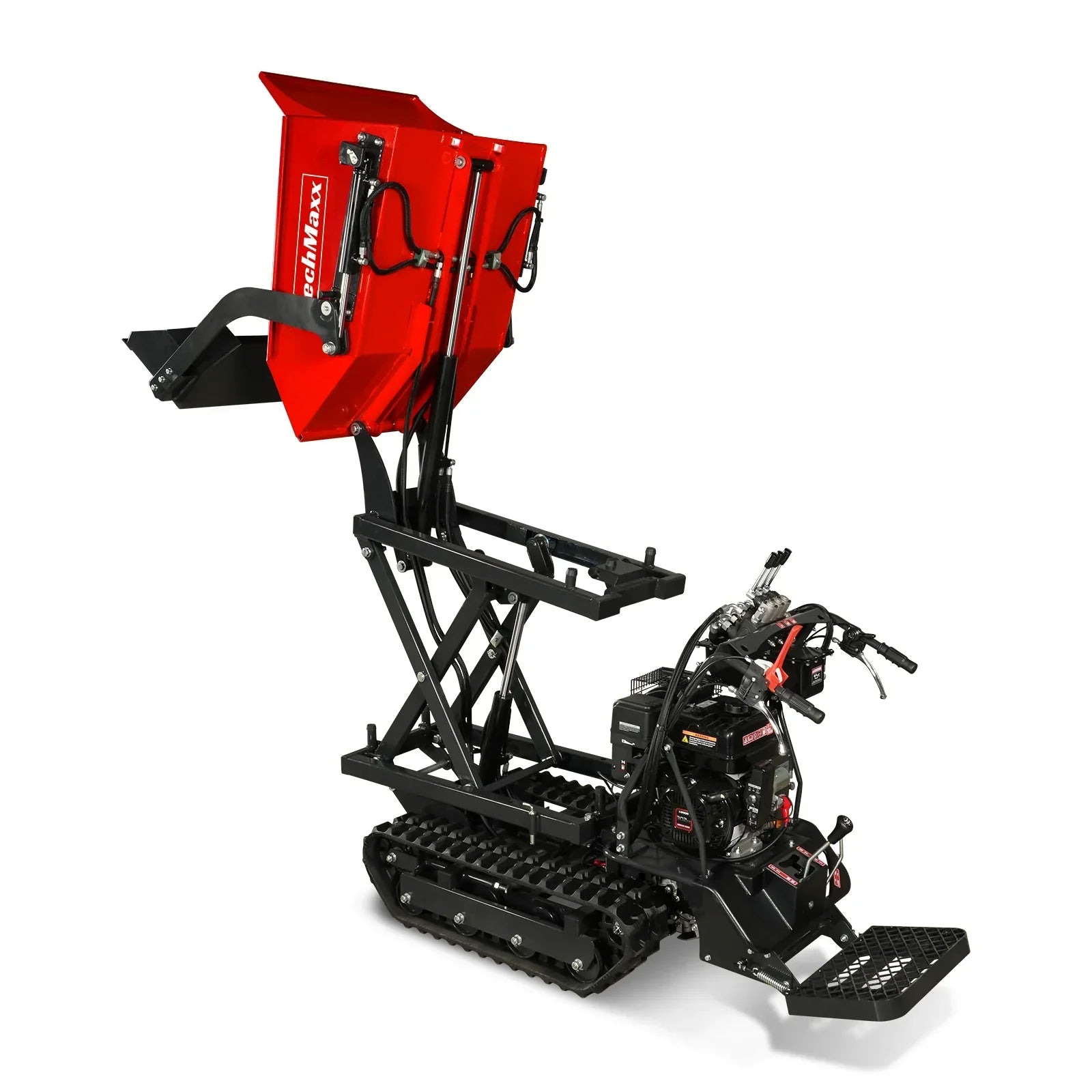

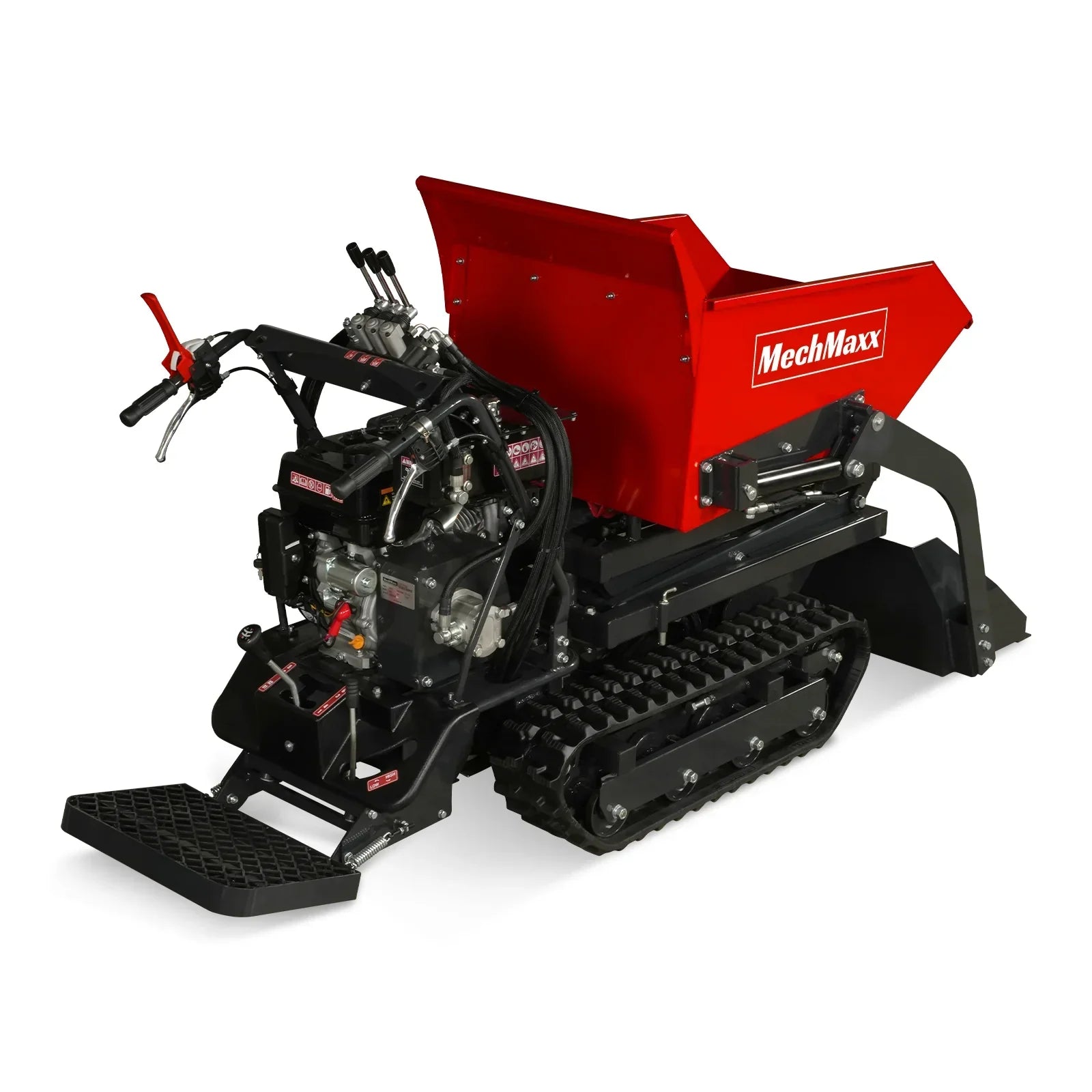

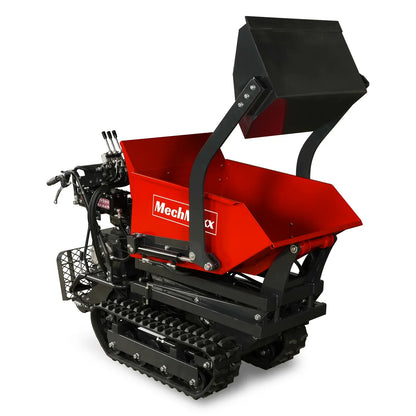

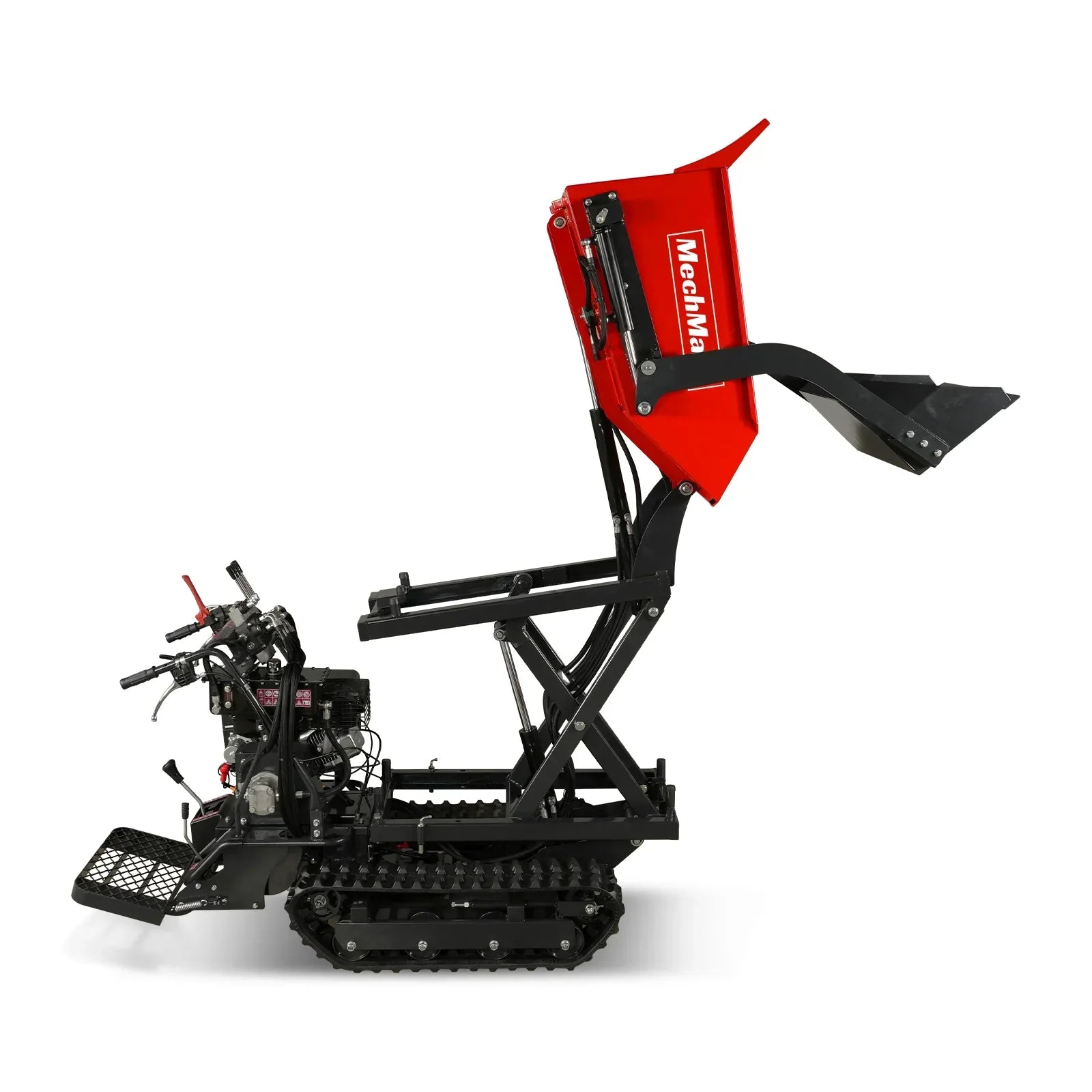

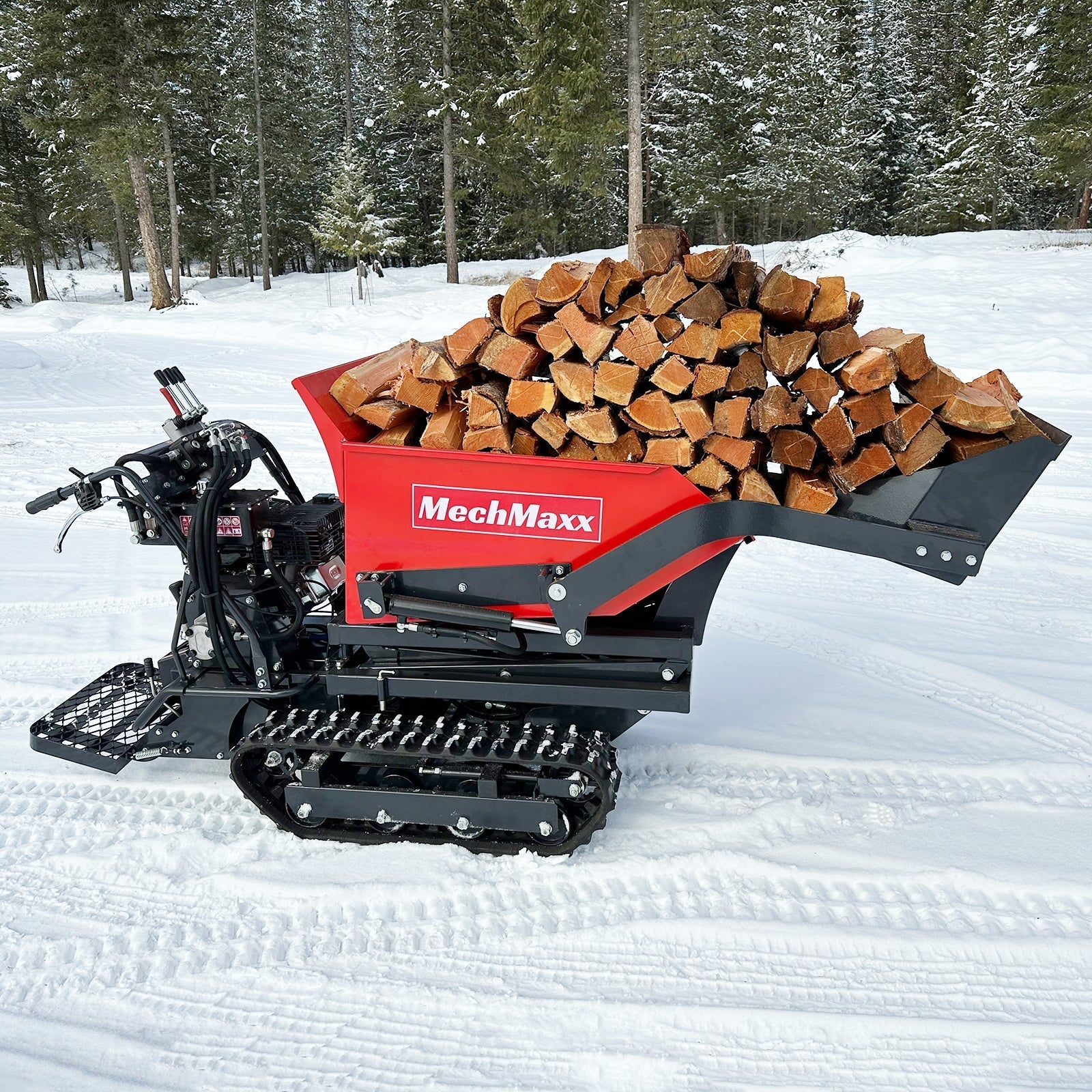

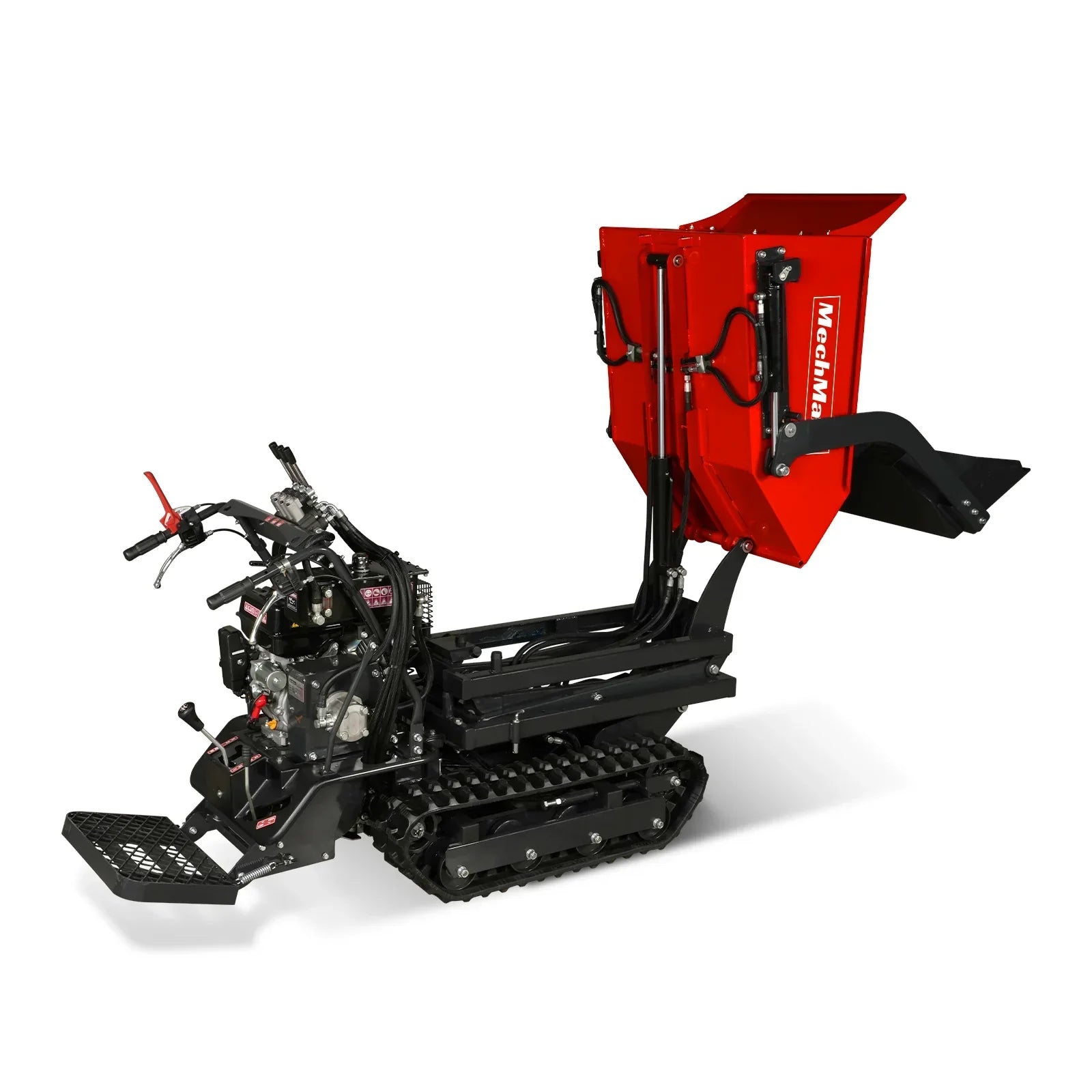

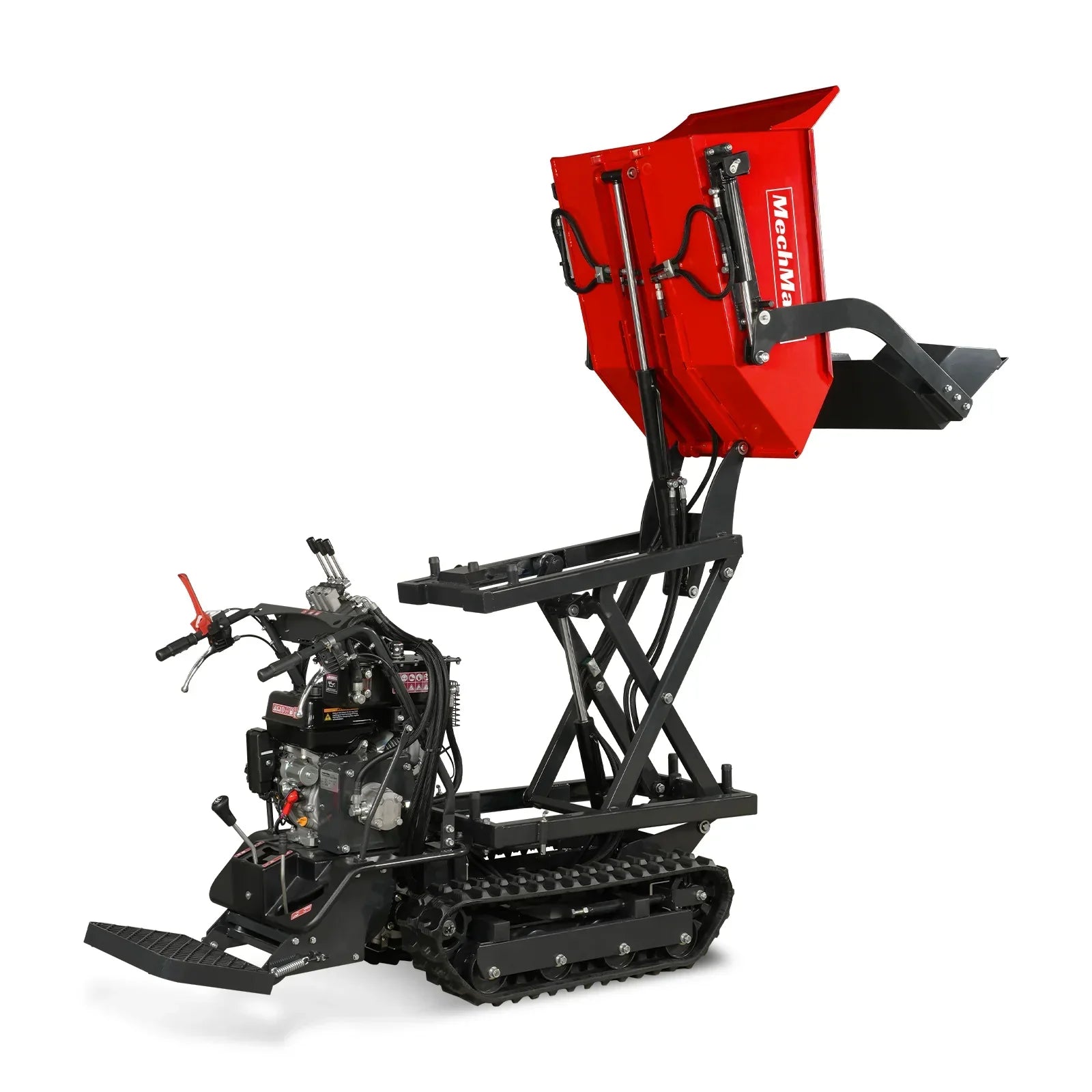

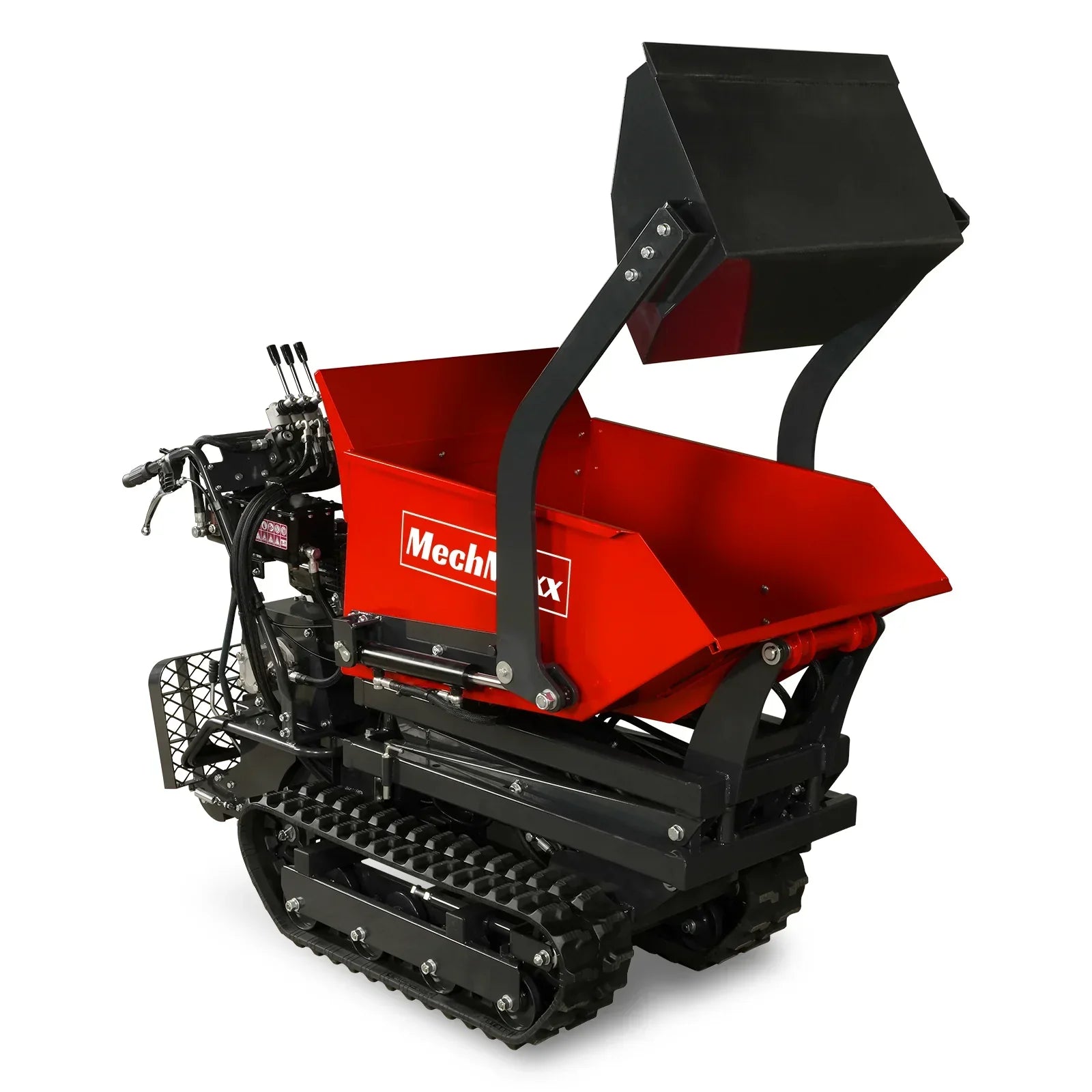

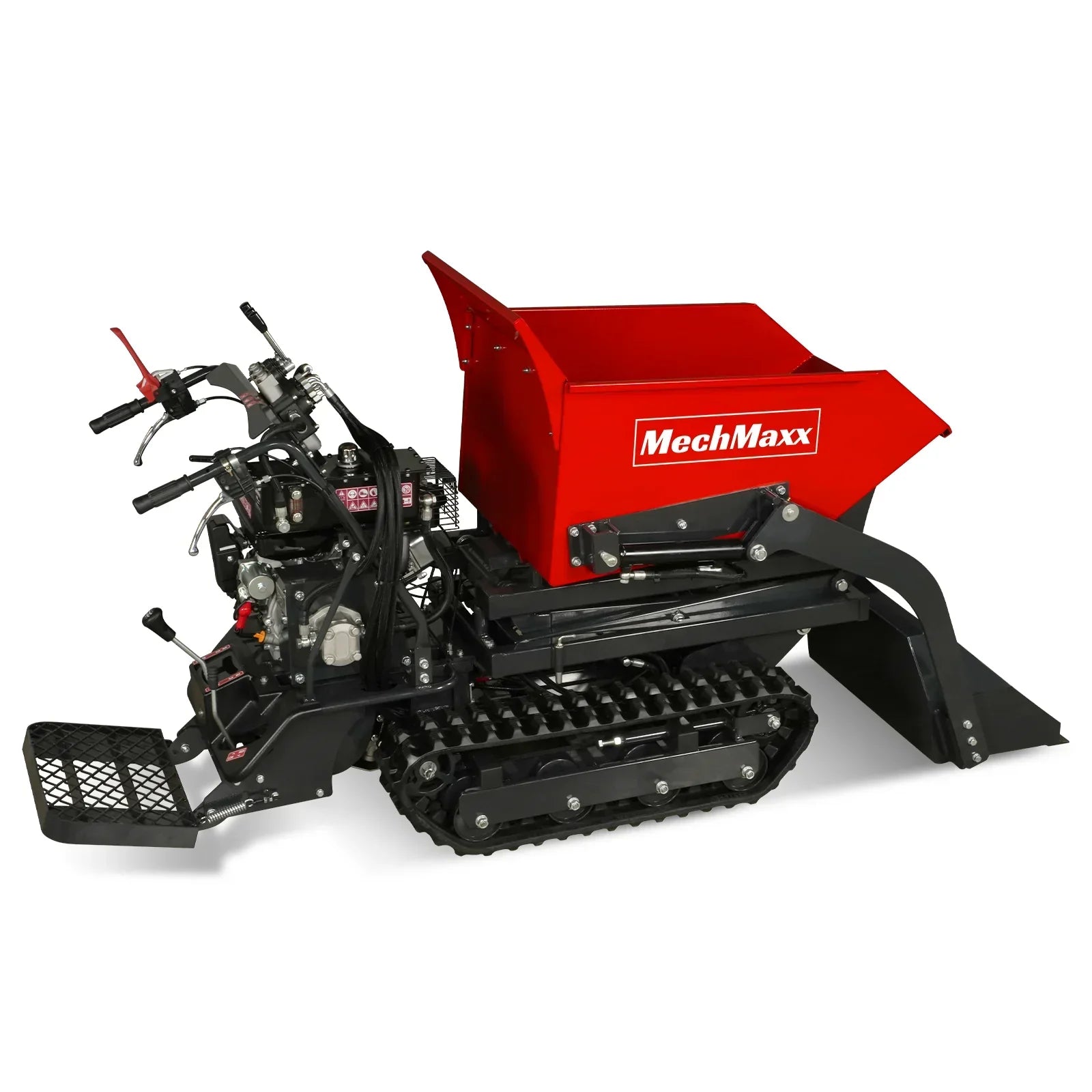

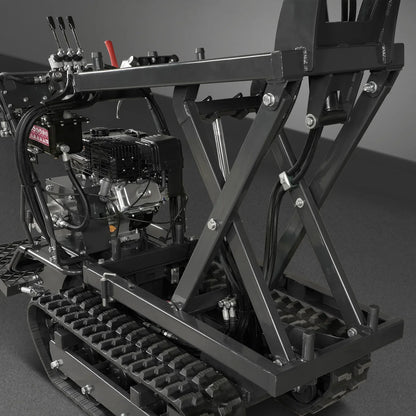

1100lbs Capacity E-Start 10HP 302cc Gas Engine Tracked Dumper Hydraulic Tipping and Lifting with Front Shovel , D50HTFL

1100lbs Capacity E-Start 10HP 302cc Gas Engine Tracked Dumper Hydraulic Tipping and Lifting with Front Shovel , D50HTFL

Regular price $1,999.50 USD
Regular price Sale price $1,999.50 USD
Sale Sold out
Shipping calculated at checkout.

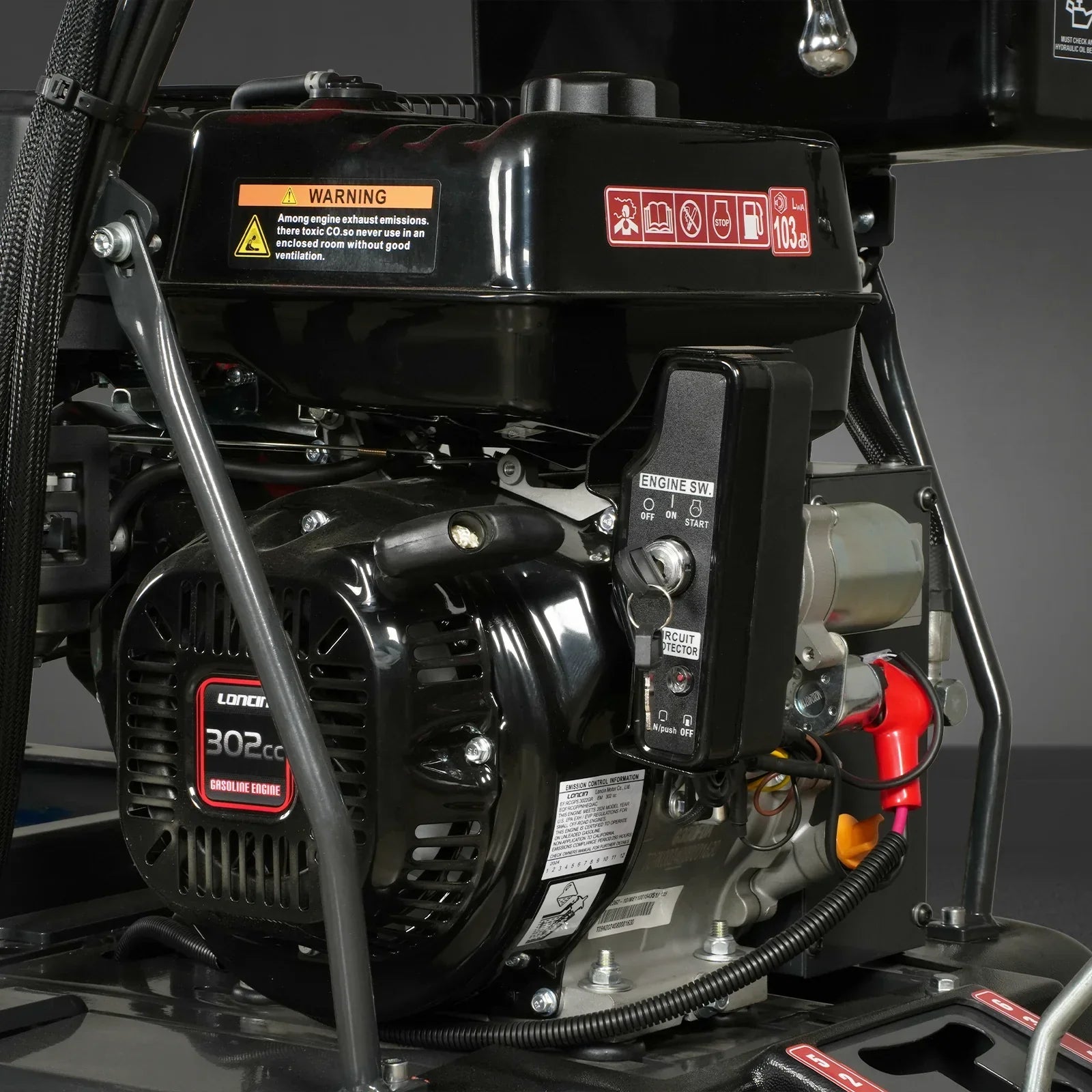

Engine LONCIN G300FD Gasoline Engine Bucket Capacity 10 cu.ft.
Engine Type Single Cylinder, 4 Stroke, Air-Cooled, OHV Shovel Capacity

1.8 cu.ft.

550lbs

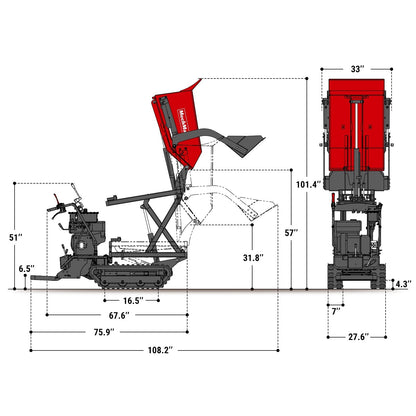

Engine Displacement 302 cc Overall Width 33 in

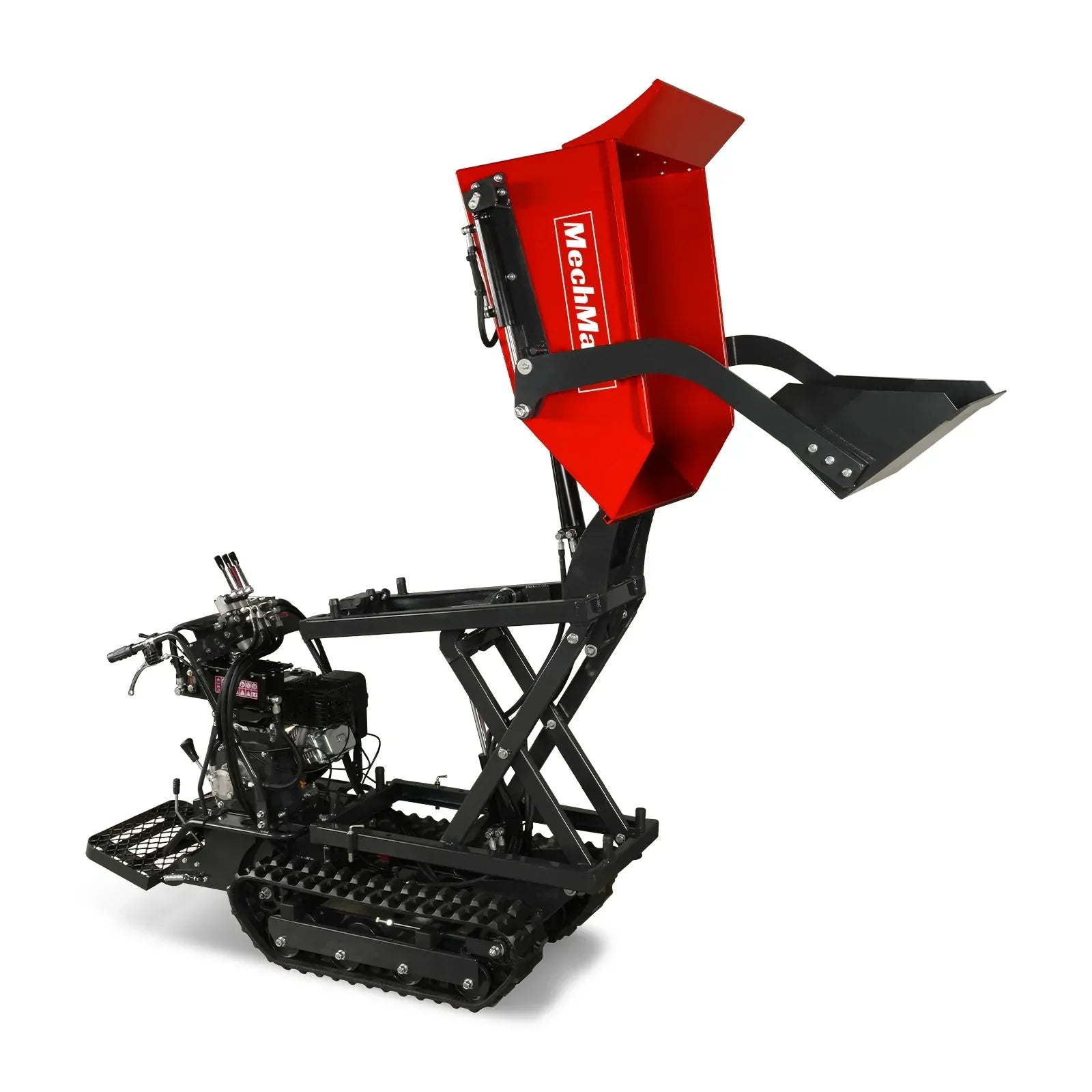

Horsepower 10 HP Max. Dumping Height 57 in
Start Electric Start (battery included) Bucket Size 39.9 x 27.5 x 17.7 in
Fuel Tank Capacity 1.59 gal (6L) Track Width 7 in
Engine Oil Capacity 0.25 gal (0.95L) Ground Clearance 4.3 in
Hydraulic Oil Capacity 0.79 gal (3L) Working Pressure 16 Mpa
Transmission Transaxle 6 Forward / 2 Reverse Speed Track Roller 8 Pcs
Forward Speed 0-4.47 mph Track Size 180W x 60P x 38L
Reverse Speed 0-1.49 mph Package Method Iron Frame
Max. Gradeability 30% Packing Size 75.5 x 30 x 51 in
Loading Capacity 1100 lbs Weight (N.W / G.W.) 930 / 1012 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
